21 Discovery

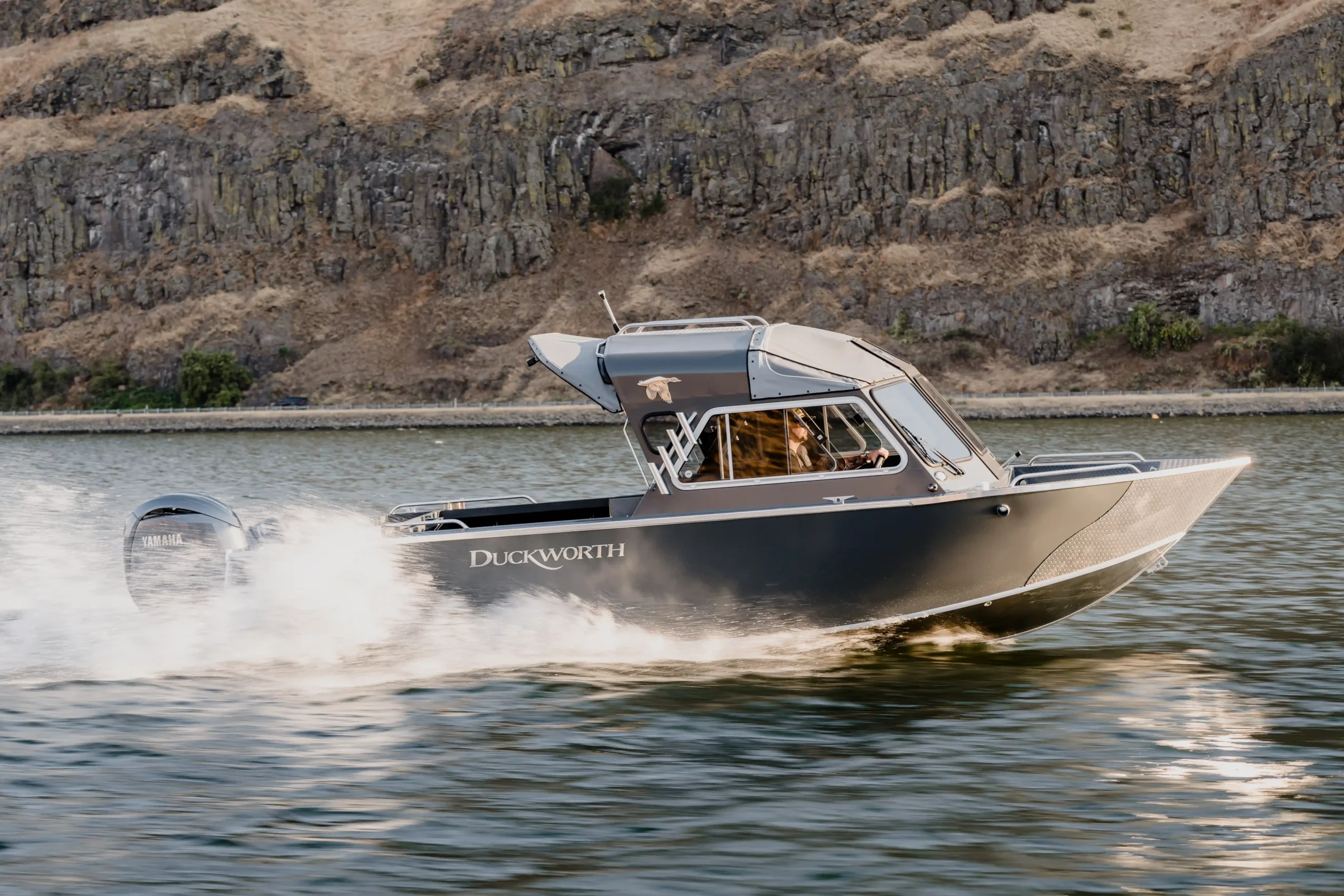

The Duckworth 21 Discovery takes the esteemed capabilities of its precursor and stretches them further with a bit more length.
This extra space translates to an even more interior space, providing superior safety and stability for families and fishing enthusiasts alike. The extended bottom with our Pacific Offshore Bracket and expansive fishing cockpit, the largest in its class, remain standout features, offering abundant room for both navigation and leisure. It’s not merely about traversing various waterways; the 21 Discovery is engineered to be a sanctuary of safety and versatility on the water.
With its broad gunwale embracing the craft’s perimeter and true-reverse chine cutting through waves, the Duckworth 21 Discovery isn’t just any vessel—it’s a floating fortress designed for those who demand extra room and performance as they embark on their adventures.

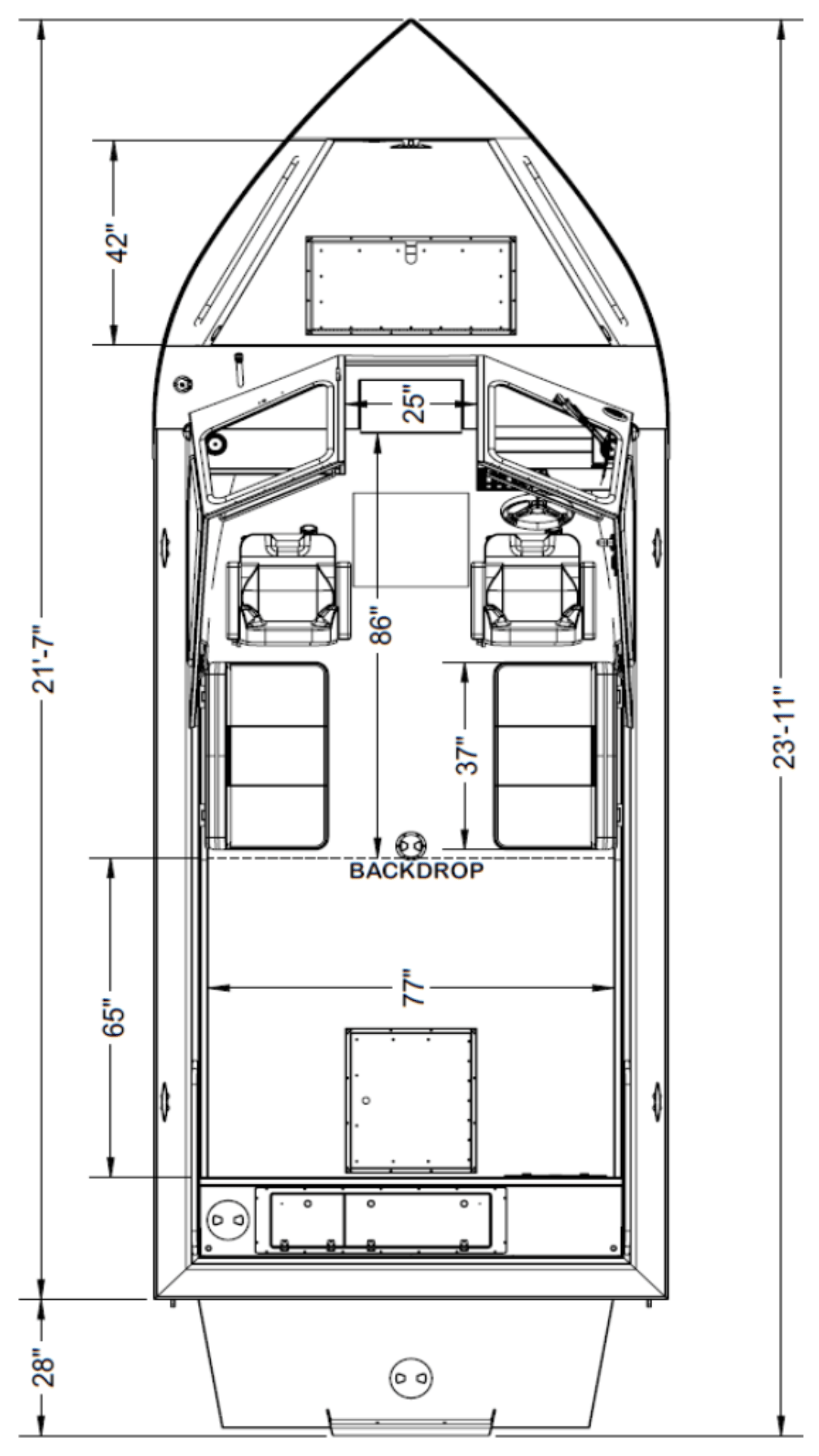

Specifications
| Length (including bracket) |
23′ 4″ / 7.14m |
|---|---|
| Beam | 98″ / 2.49m |
| Bottom | 78″ / 1.98m |
| Side | 38″ / 96.52cm |
| Dry Weight | 2288lbs / 1038kg |
| Fuel | 65 USG diurnal fuel system / 246.1L |
| Deadrise | Bow: 30° Forward: 24° Transom: 14° |
| Max HP Rating | 250hp / 187kw |
| Maximum Capacities | 7 persons or 1155lb, (525kg) 2450lb, (1111kg) with motor, persons, gear |
Build Your Own Duckworth
Customize your boat how you want it.
Deadrise
STANDARD FEATURES
Hull Features

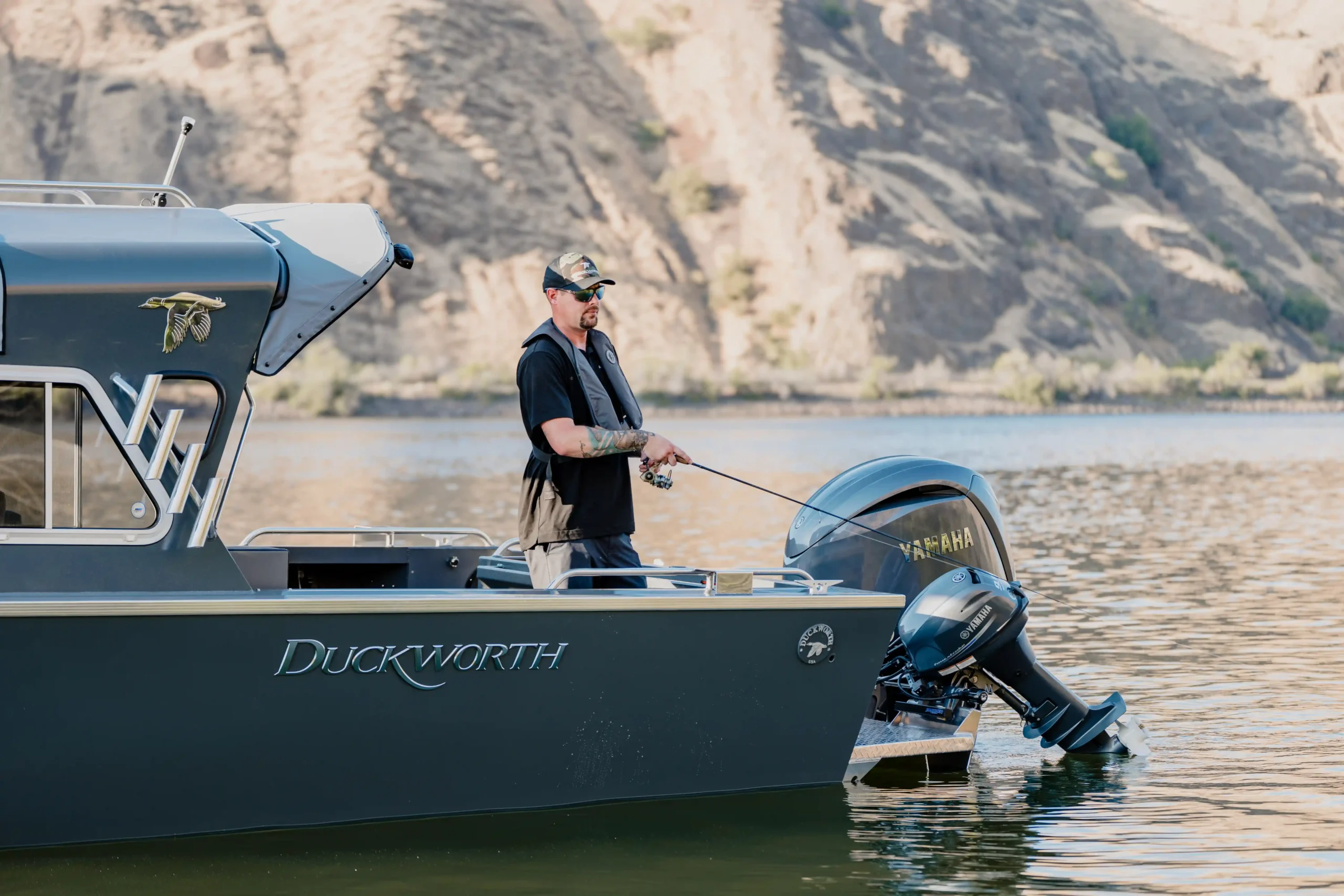

- 25″ Single engine offshore bracket with integral bottom sheet and full width swim platform
- Extruded chine, toe rail, keel strip & gunwale
- Full reverse chine bottom design
- 5 piece welded, walkthrough windshield with grab handles

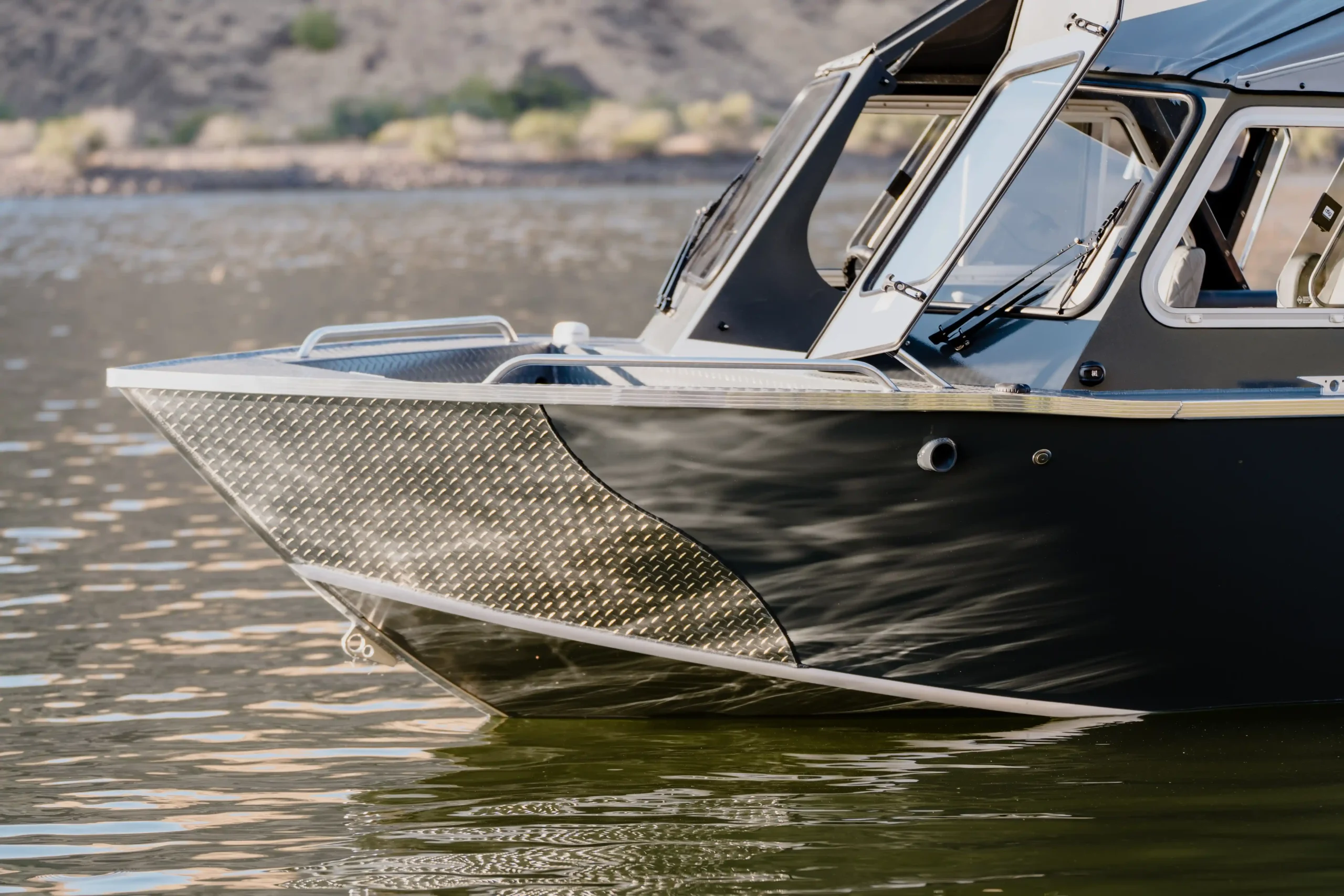

- Recessed self bailing diamond tread bow
- Bow storage box with anchor rope cutout
- 3″ polished bow & stern rails
- Bow storage (Room for 2nd battery)
- Passenger console tray w/grab handle

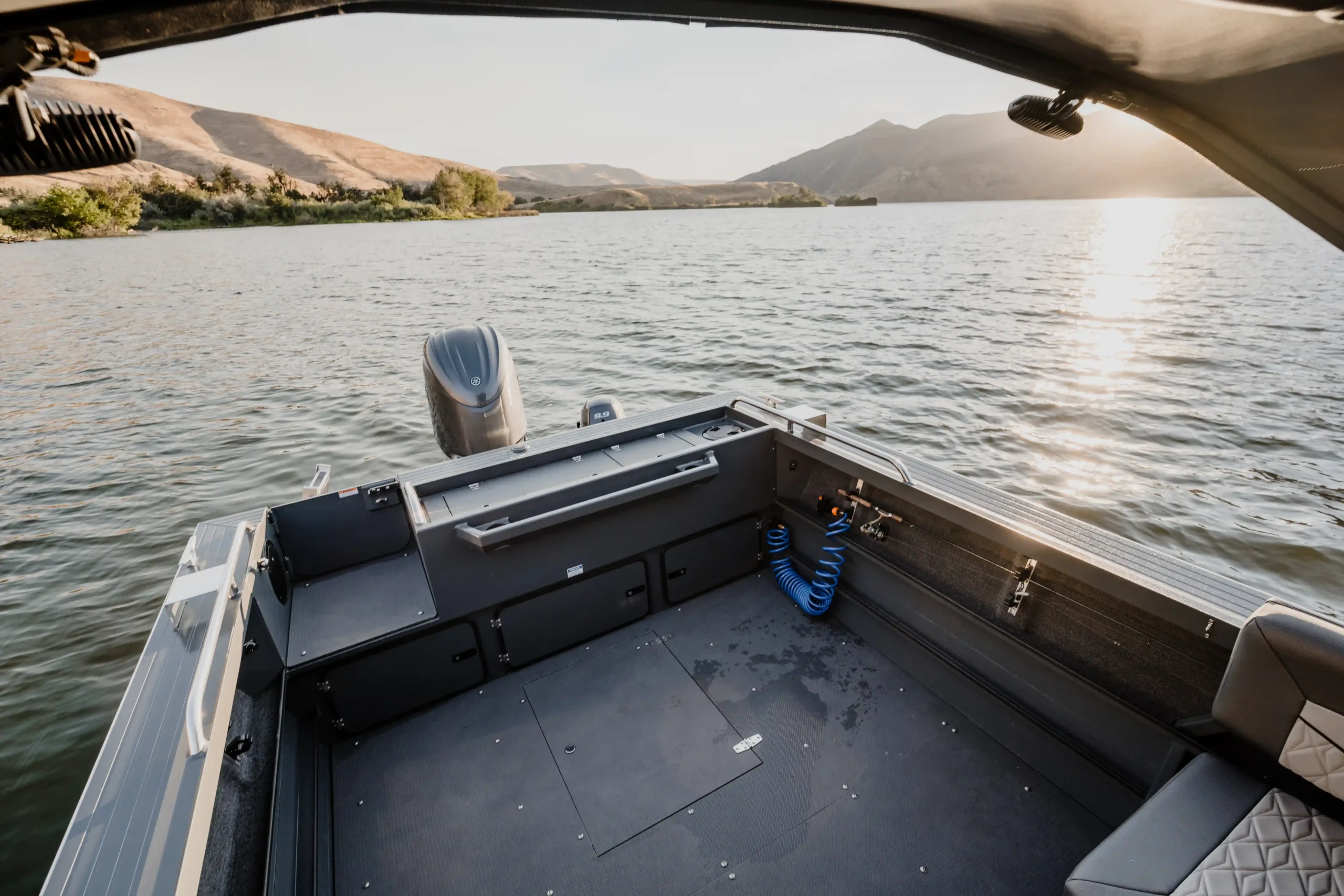

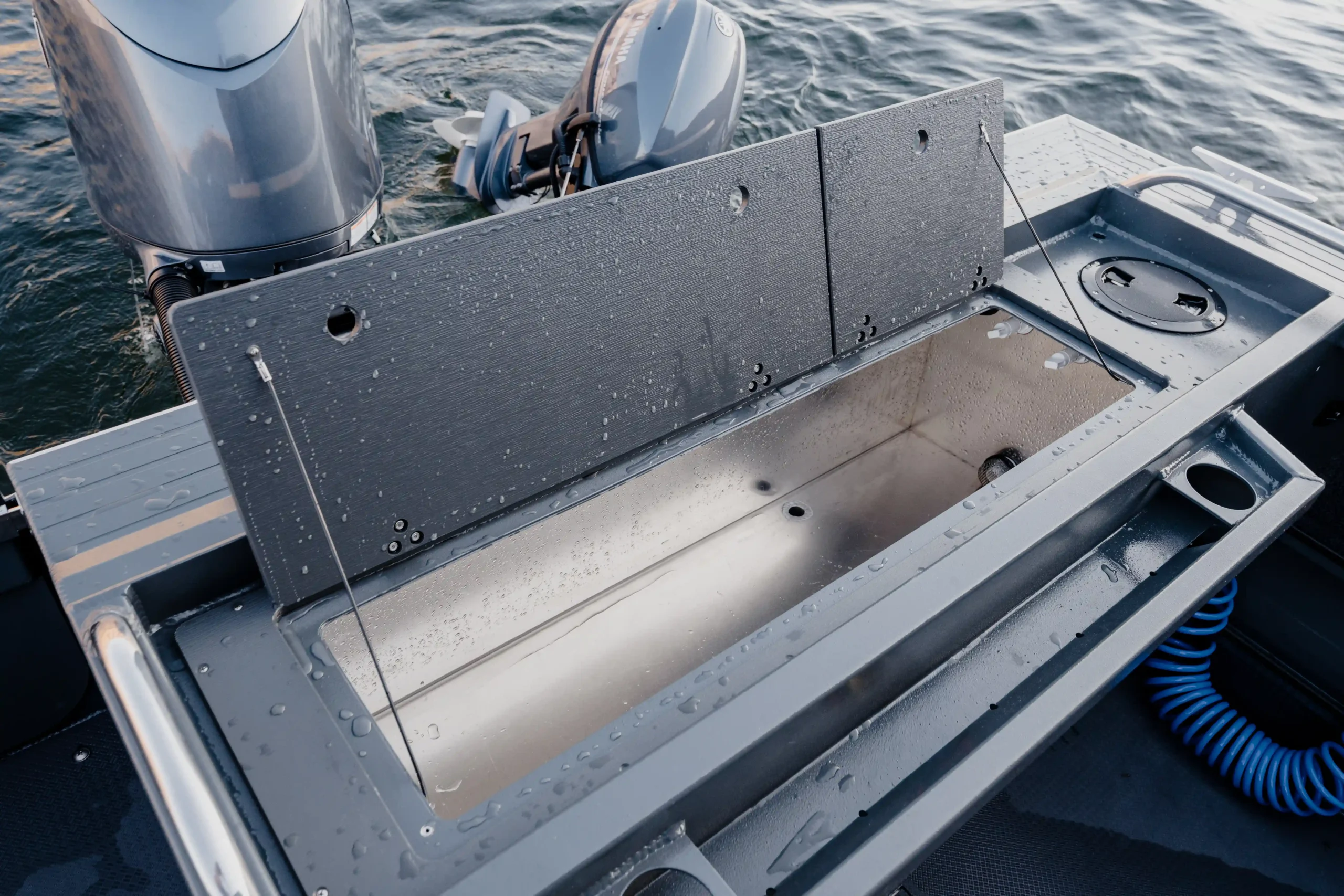

- Fisherman’s transom with fish box, self draining utility area, 2-piece cutting board hatch lid and framed rigging access panels
- Side storage trays with gunwale rod racks – 2 per side
- Welded double bow eye
- 2 – welded stern eyes
- 5 – 8″ welded cleats
- Pressure tested subfloor fuel cell – diurnal system compliant
- Transducer brackets
- Trim tab brackets
Exterior Features
- Choice of standard paint colors
- Top, 1/2 side and deck paint
- Side stripes & vinyl graphics
- Granite color paint on gunwales
- Offshore zinc anodes – 2x
- Stainless steel thru-hull fittings below waterline w/ seacock valves

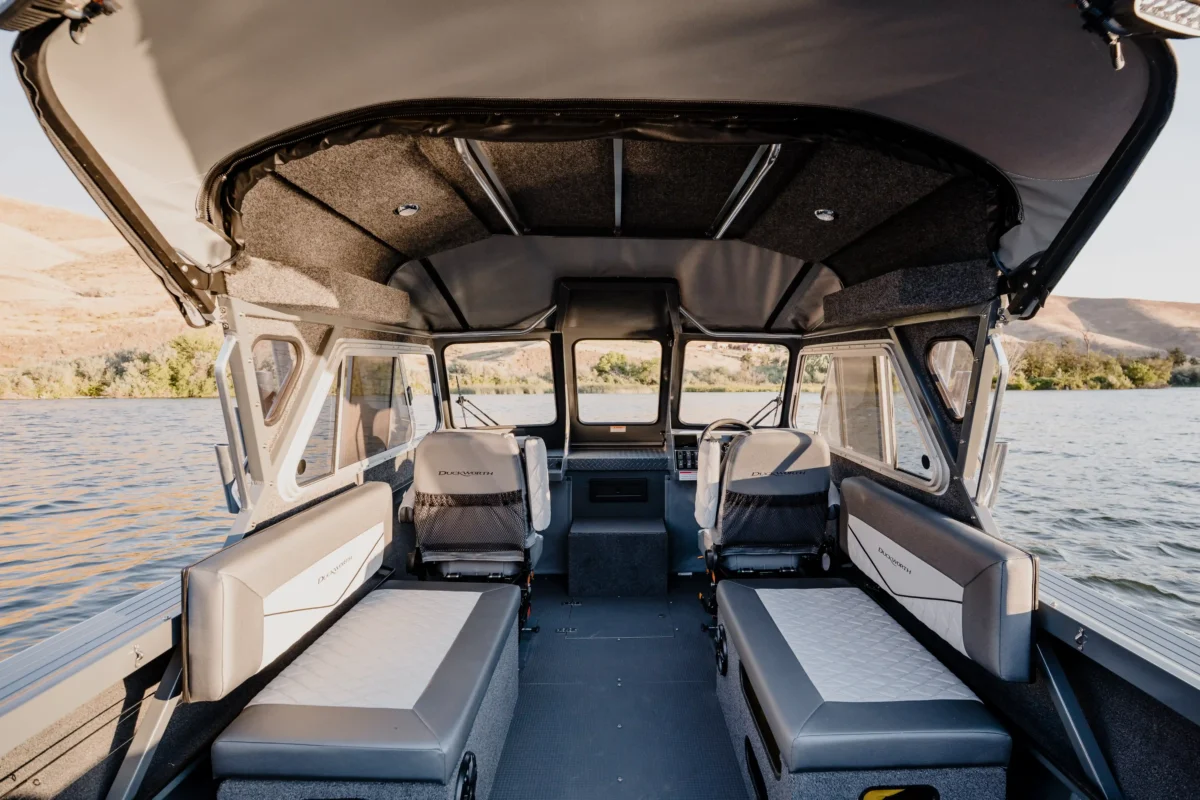

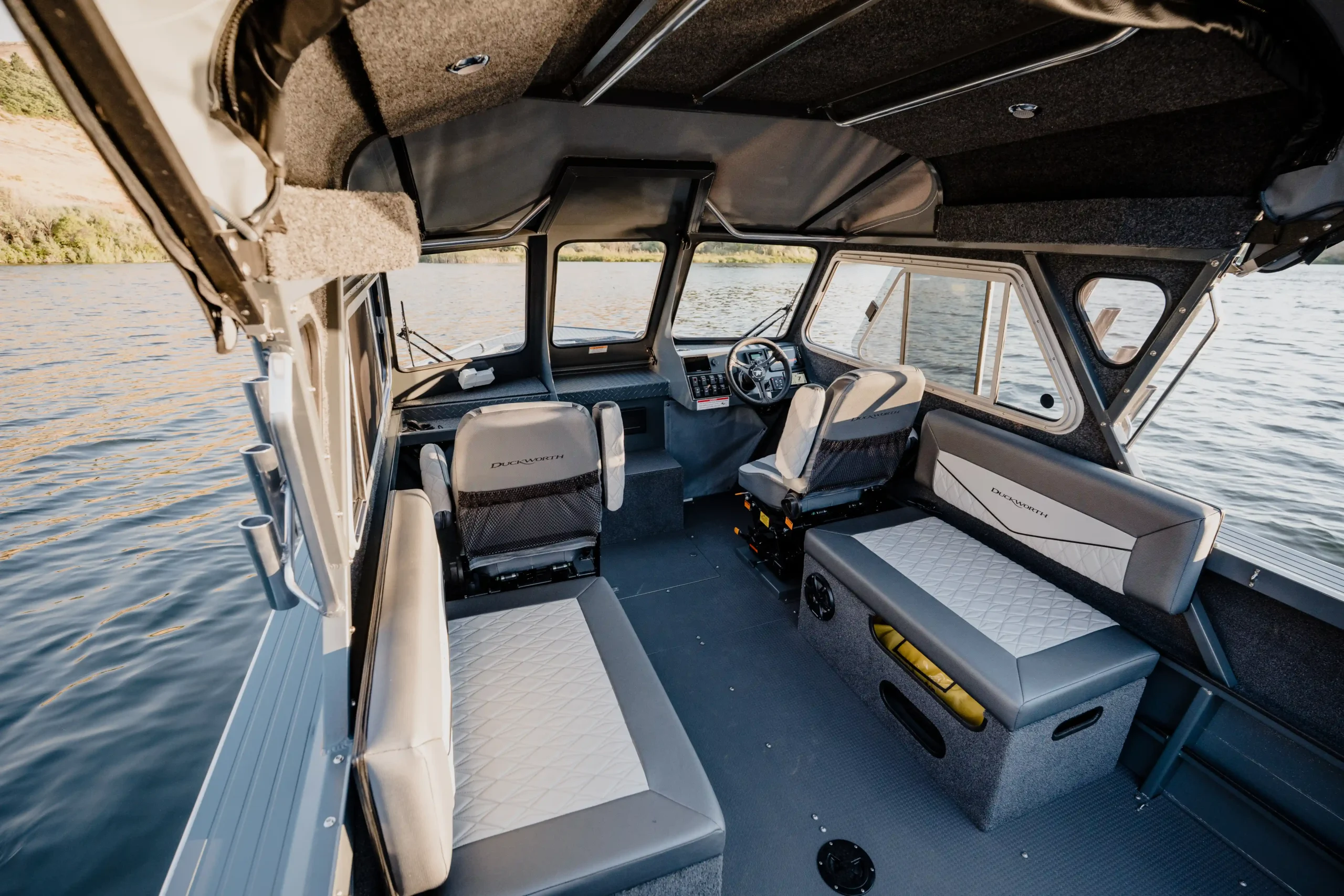

Interior Features

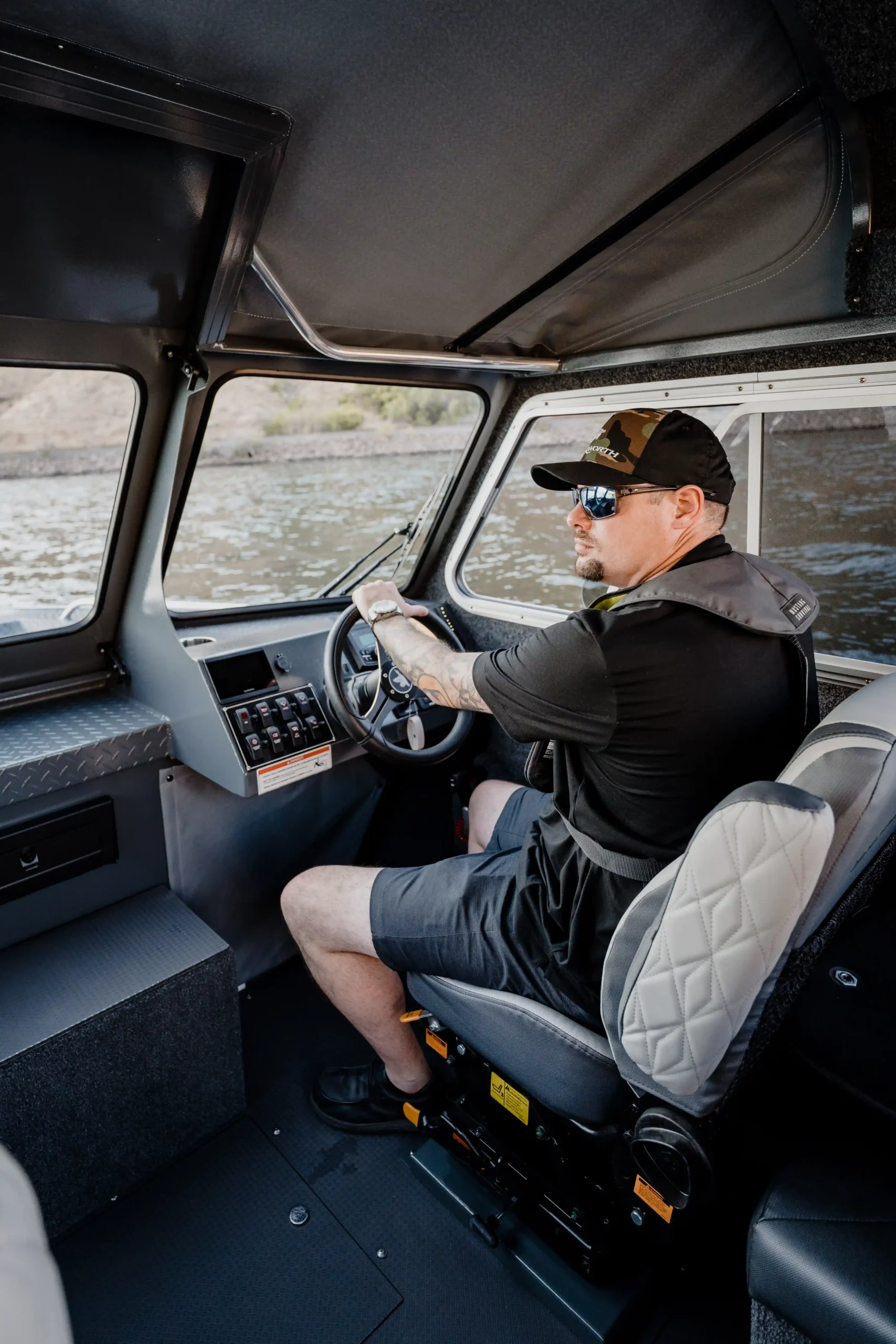

- Deluxe captain seats on adjustable pedestal bases
- 37″ Rear bench seats w/back rest
- Heavy duty convertible top with side curtains, backdrop
- Vinyl covered marine grade plywood floors and kick panels
- 6-Stainless steel cup holders
- Half fisherman’s interior
- Netted storage
- Rear transom storage
- Forward and aft floor storage compartments
- Locking glove box
Rigging Options
- Driver side pantograph wiper

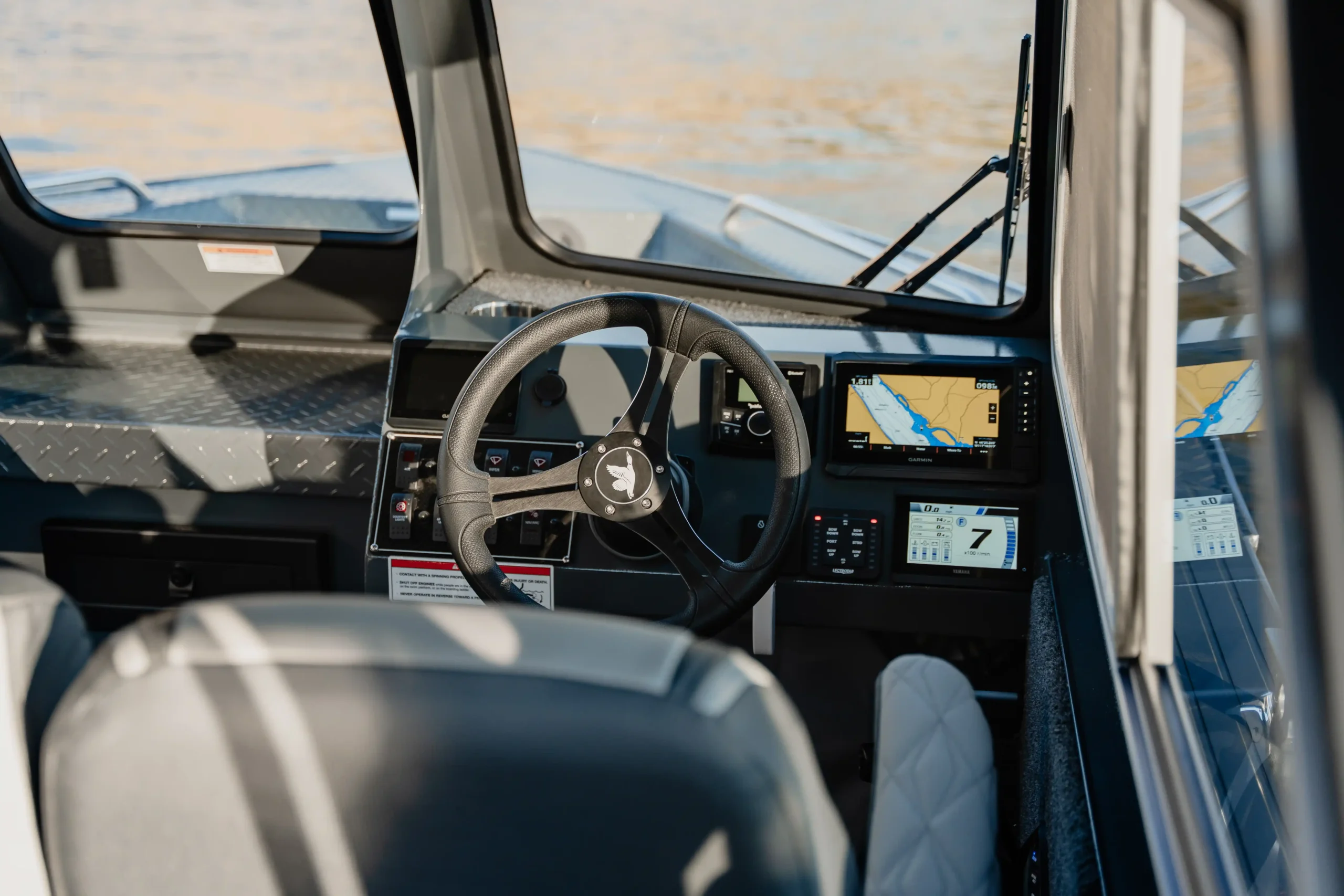

- Hydraulic steering system w/ tilt helm

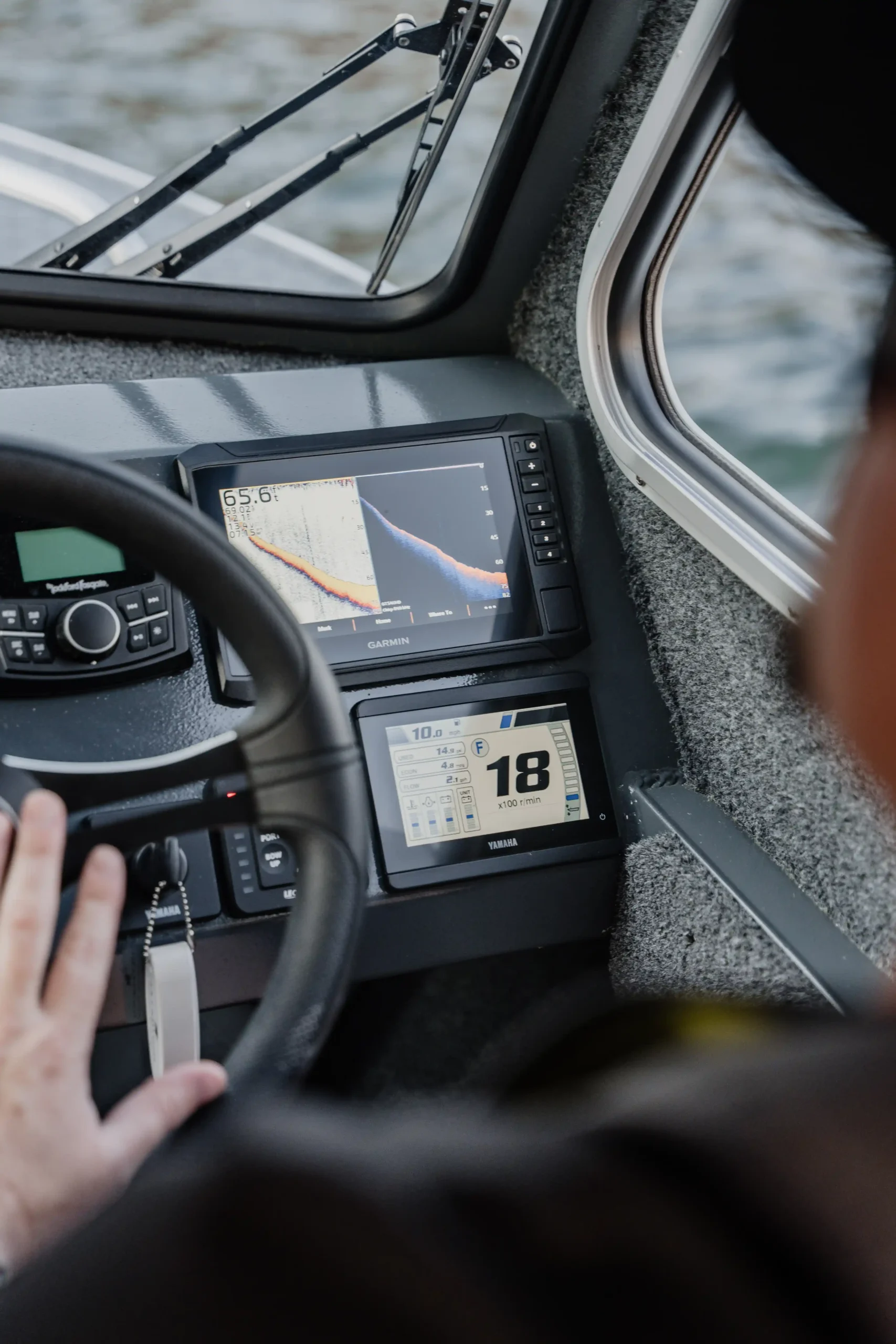

- Switch panel w/ fuel gauge and USB port
- LED Navigation lights and anchor lights
- Stainless steel marine horn
- Auto bilge pump
- Fuel water separator
- Single Battery Switch only (No Battery)
