Offshore
34 Atlas (New)
Experience the pinnacle of advanced engineering and power with the Duckworth 34 Atlas, the best in class for your legendary adventures.

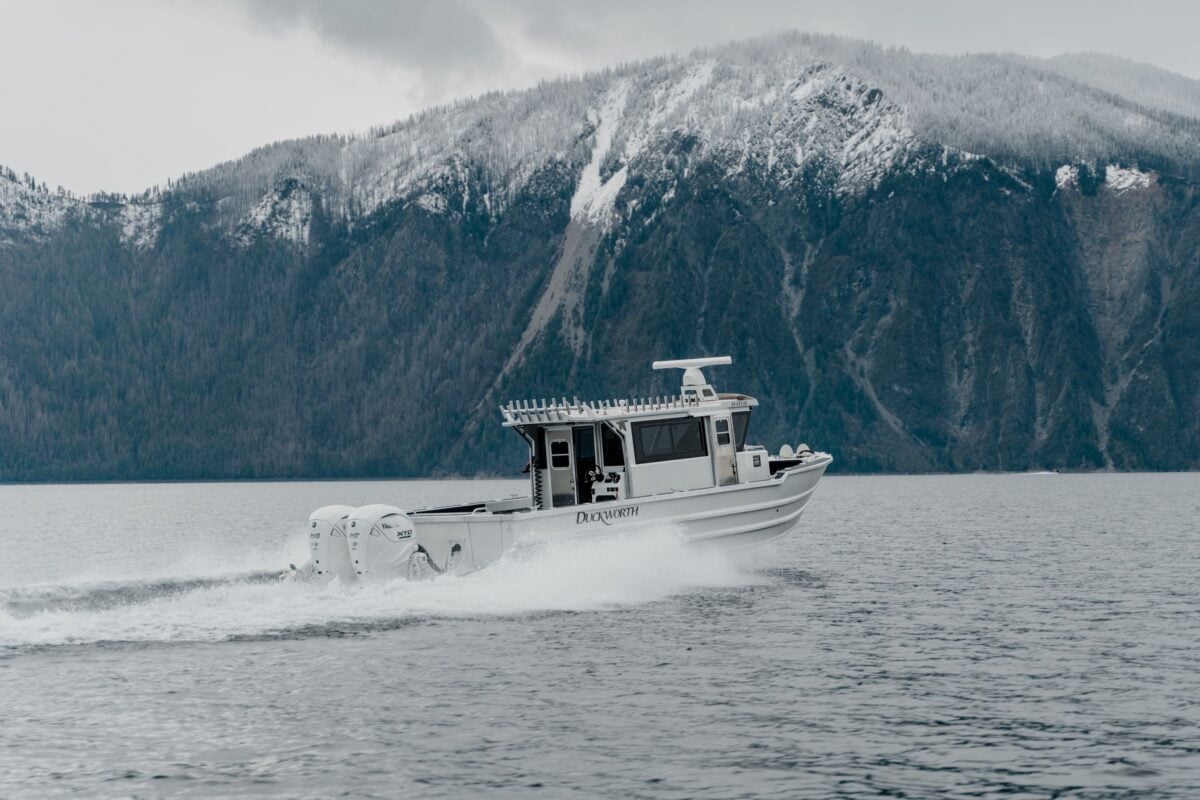

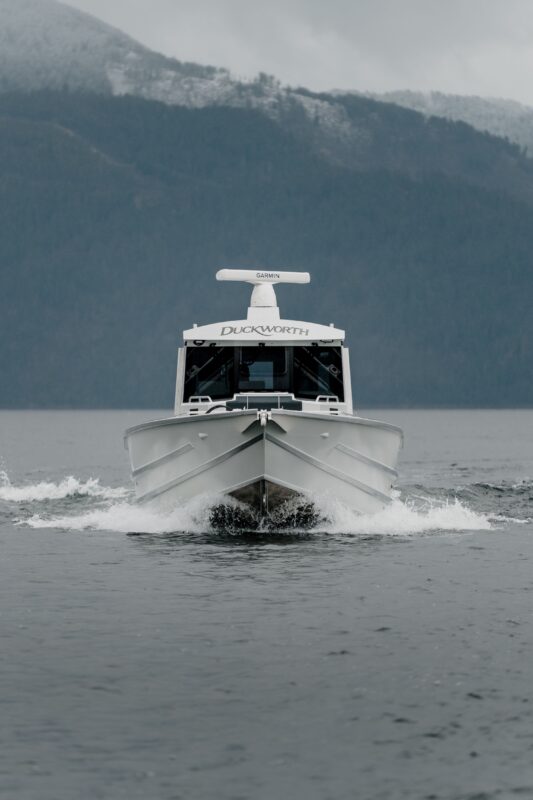

Introducing the flagship of the Duckworth fleet: the Duckworth 34 Atlas. This premier vessel stands as the pinnacle of advanced engineering and power within our lineup. With an overall length of 37 feet and 1 inch, an impressive 11-foot beam, and a 10-foot 6-inch bottom width, the Atlas can accommodate up to 14 people with a total capacity of 18,000 lbs. The main cabin features our first-ever walk-around style configuration, providing easy access to the perimeter of the entire boat, significantly expanding the fishable area.

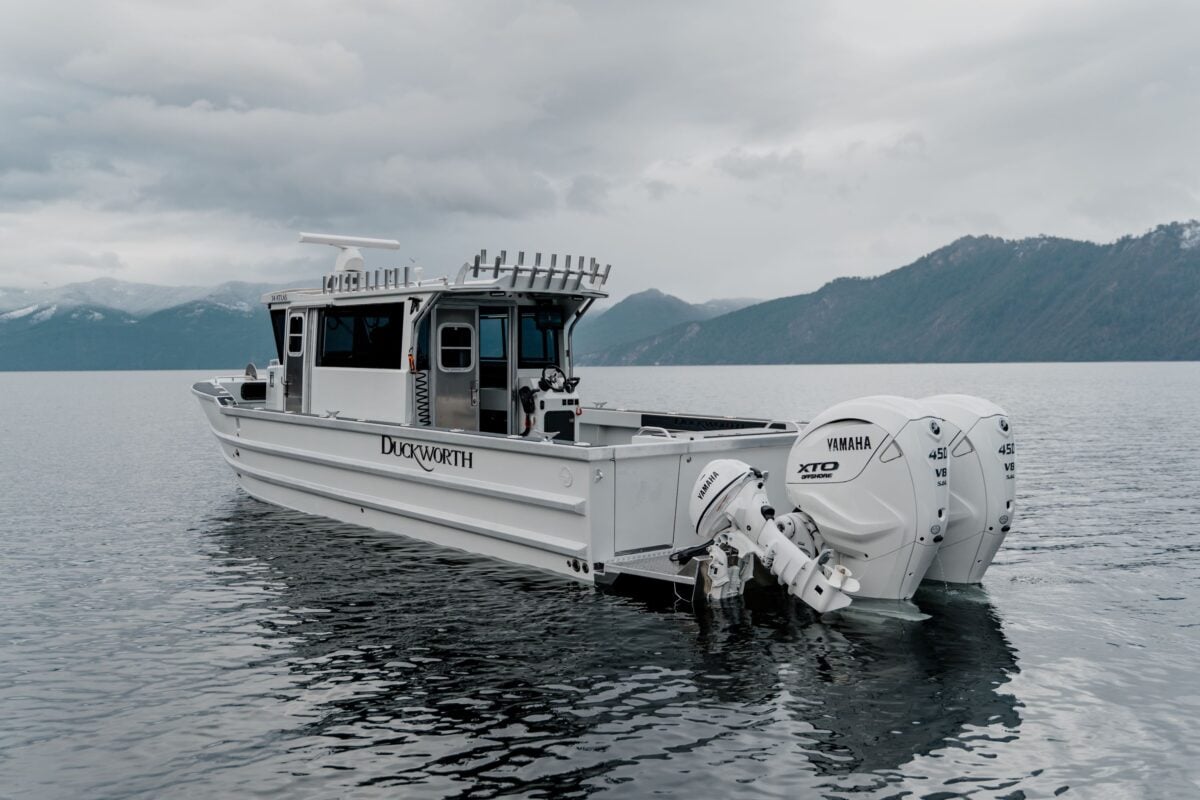

Powered by a Yamaha twin-engine configuration with a maximum of 900 horsepower, the Duckworth 34 Atlas guarantees you have the power to conquer any waters, whether you’re cruising or fishing. The forward-leaning windows not only highlight the vessel’s sleek, modern aesthetic but also provide superior visibility, enhancing your navigation. With innovative electronics from Garmin and a digital switching backbone, controlling the boat’s features is effortless, ensuring a smooth and enjoyable experience on the water. Embark on your next adventure with the Duckworth 34 Atlas, the ultimate legendary vessel.
Specifications
| Length (including bracket) | 37′ 1″ / 11.3m | ||
|---|---|---|---|
| Beam | 132″ / 3.35m | ||
| Bottom | 125″ / 3.17m | ||
| Side | 48″ / 111.8cm | ||
| Approx. Dry Weight | 11,800lbs / 5,352kg | ||
| Fuel | 300 USG / 1135.6L diurnal fuel system | ||
| Max HP Rating | 900 HP / 671kw | ||
| Deadrise | Bow: 39° Forward: 26° Transom: 19° | ||
| Engine | Twin Outboard Engines Only | ||
| Maximum Displacement | 19,000lbs / 8,618kg | ||
| Maximum Capacities | 12 person or 1,980lbs / 8,618kg
5,200lb, (2,359kg) motor, persons, gear |
||
Build Your Own Duckworth
Customize your boat how you want it.
Deadrise
STANDARD FEATURES
Hull Features
- 30″ twin engine offshore bracket with integral bottom sheet
- Full reverse chine bottom design
- Full-width tread plate swim platform
- Extruded chine, formed toe rail and keel strip
- Dual side rub rail w/ lower one extended to keel
- Walk-around cabin w/ forward leaning windows, Alaskan bulkhead, tread plate roof, and 3″ full
- length top grab rails
- Cuddy cabin with electronics cabinet
- Swept bow w/ mounting tub for anchor winch, and anchor pulpit
- Transom w/ insulated 37-gallon Livewell, cutting board lid & locking rigging compartment doors
- 4 Side storage trays
- Dual 73-gallon insulated aft sub-floor fish boxes with self draining lids and individual diaphragm pumps
- Self-draining cockpit w/ composite UV resistant flooring
- Transom walk-thru doors on port and starboard side
- Pressure tested sub floor fuel cell
- Billet aluminum welded bow eye & stern eyes
- 7x – 11″ billet aluminum welded cleats mounted under gunwale with hawse rings
Exterior Features
- Choice of white or grey HD marine coating on boat interior and cabin from the gunwales up
- Reel Tread Decking on gunwales
- Side graphics
- Offshore zinc anodes – 2x
- Stainless steel thru-hull fittings below waterline w/ seacock valves
- Roof rod rack holding 37 rods
- Radar arch
- Crab davit sleeve and base welded into starboard gunwale
Interior Features
- Frame-less bonded window package including 3 piece fixed front windshield, slider side windows, and rear bulkhead windows
- Port and Stbd front helm seats w/flip-up bolsters and suspension seat base on aluminum riser
- 4 – 33″ bench seats with storage and footrests
- Cuddy Cabin head w/ electric toilet & 6 gal. holding tank, sink with 20 gal. of fresh water, sleeping berth, and sliding V-berth door
- Cabin sub-floor storage including rod storage
- Forward overhead storage cabinet
- Port console with storage and locking door
- Carpeted cabin sidewalls
- Composite flooring inside cabin
- Overhead and floor courtesy lighting in main cabin
- Aft deck and forward-facing LED work lights
Rigging Options
- HelmMaster electronic steering w/ Tilt helm, Yamaha twin engine DEC control, pre-rig, and EKS
- Driver dash w/auxiliary buttons and USB charging ports
- Garmin GPSmap 8616xsv 16″ MFD with 3D transducer, 1kW wide beam transducer, engine monitoring, and digital switching to all connected electronics
- ZipWake Trim Control system w/controls at main helm
- Rear helm cabinet with HelmMaster steering w/ tilt, Yamaha twin engine DEC control and pre-rig, dual USB ports, and cup holder
- 3x – Pantograph windshield wipers w/ passenger wiper switch
- LED navigation lights, anchor lights, and marine horn
- 3x – 2000 GPH Auto bilge pumps, 1x – 4000 GPH Auxiliary Pump, & 1x – high water bilge alarm
- Carbon monoxide detector in V-berth and main cabin
- 3x – washdowns, 1x – raw water in the bow, 1x – raw water in the cockpit, and 1x – fresh water in the cockpit
- 2x – group 27 AGM motor batteries and 2x – group 31 AGM house batteries
- Shore power (Includes ELCI, isolation transformer, 3x GFCI outlets, 1 breaker panel, 2x 3-bank battery chargers, battery charger displays at main helm, and dock cord)
- Remote battery switches for each battery bank w/emergency start crossover at main helm
Recommended Trailer
- EZ Loader – T102BT 26-30 8500
- EZ Loader – TI102BT 26-30 12000
- Gateway – GTT60/25-28
Available Options
- Matching white or grey full side & transom paint
- Painted full side, transom, & brow (any color other
- EZ-6 Anchor Winch (Includes dual group 31 AGM
- 3″ stern rails
- 6″ stern rails
- 3″ stern rails w/ down rigger brackets
- 6″ stern rails w/ down rigger brackets
- Remote Kicker Bracket (Includes fuel quick connect)
- 3-step boarding ladder w/ grab handle
- Livewell Tackle Fence
- Transom Knife & Tackle Tray
- Single LED remote spotlight
- Dual LED remote spotlight
- Rigging station with fridge and storage
- Sink in rigging station (Must select Rigging Station)
- Wallas Spartan diesel heater
- Heated front seats
- Window curtain package – main cabin and V-berth
- Bench-to-bed sleeper insert w/ filler cushion
- Removable pedestal table between bench seats
- Seakeeper2 Gyroscopic Stabilizer
- Bait station pre-rig (Includes water pickup w/ T800
- HMEX Main Helm Auto Pilot & Joystick
- HMEX Rear Helm Auto Pilot & Joystick (Single or Twin)
- Bow thruster w/ main helm joystick
- 2nd Garmin GPSmap 8616xsv 16″ MFD at main helm
- Garmin GPSmap 1243 12″ MFD at rear helm
- Garmin GMR24 xHD 4kW 24″ Radome Radar
- Garmin GMR434 xHD3 4kW 48″ Open Array Radar
- NMEA Bluetooth stereo (MFD controls and 6 speakers)
- Garmin Reactor 40 Kicker Autopilot
“The platform stability and ride is nothing short of remarkable. The screws are slightly farther apart which adds leverage when twin screwing, enhancing docking/maneuvering and reducing the need for a bow thruster. Upon acceleration, the bow rises far less than expected which enhances visibility in a particularly vulnerable phase of operation.”
– Tom Nelson, www.theoutdoorline.com
“Badass boat! Walked through it today. Wanted to trade in my 2018 28 Offshore for this boat.”
– Dan C.
