23 Navigator

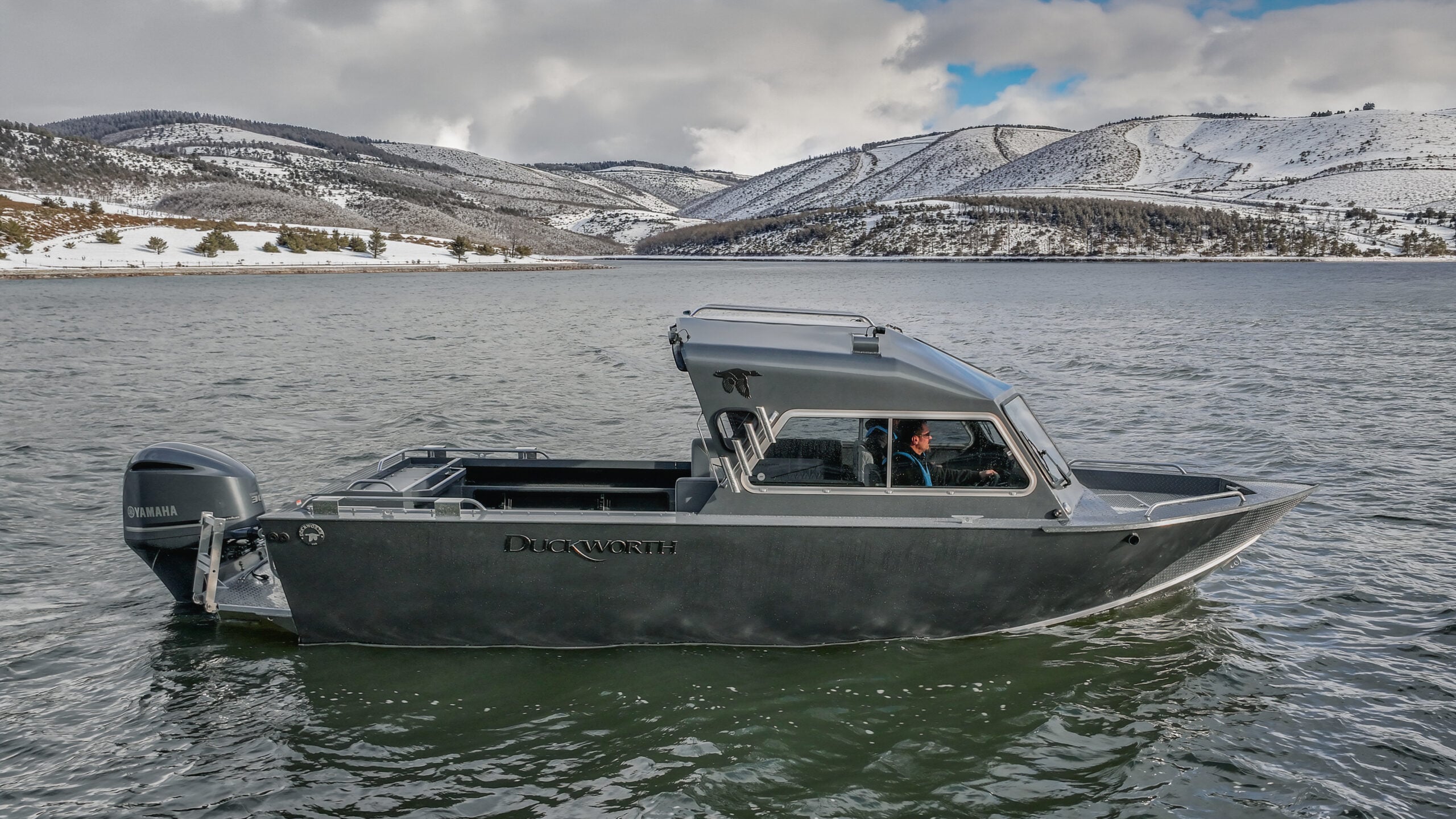

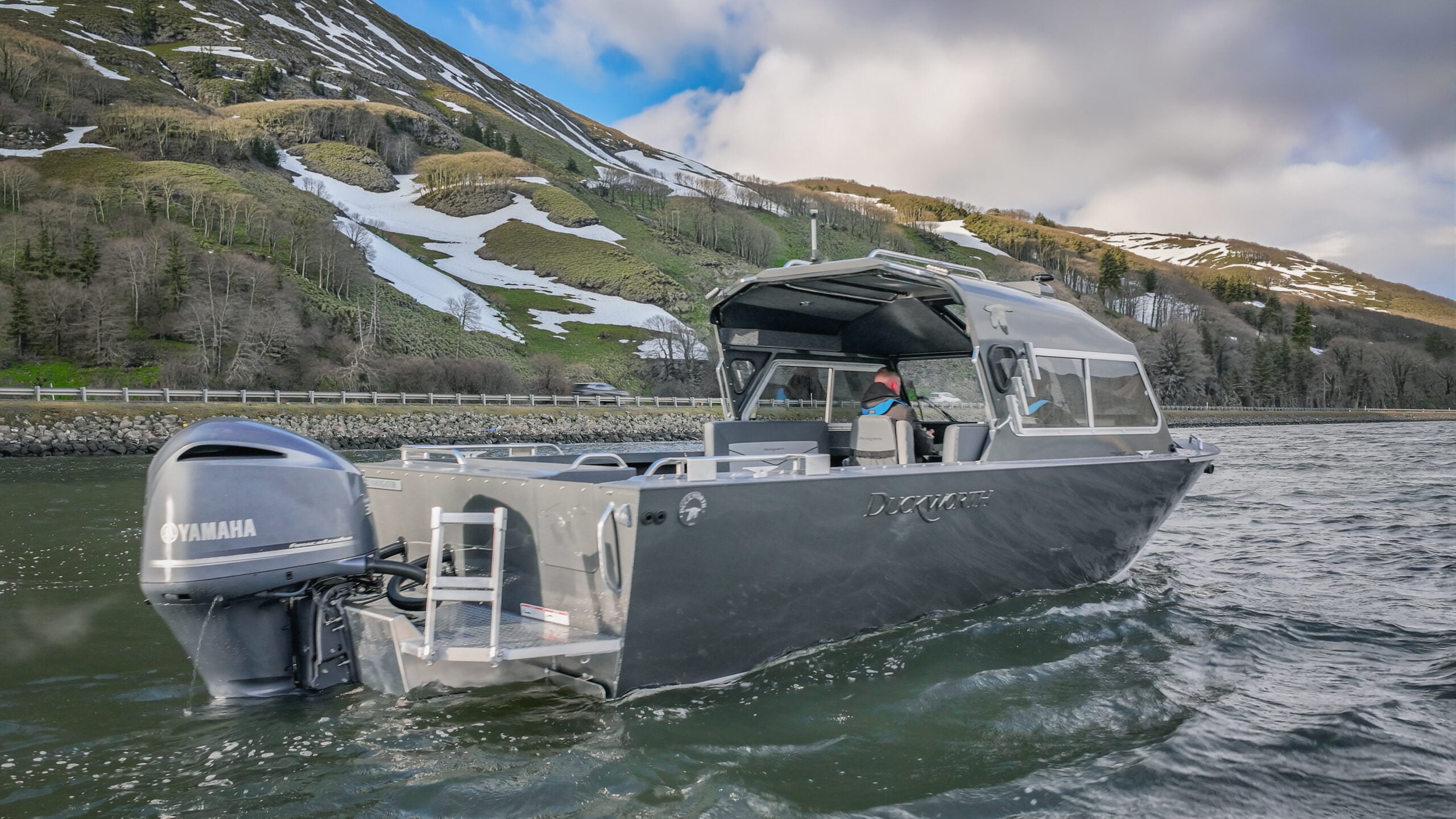

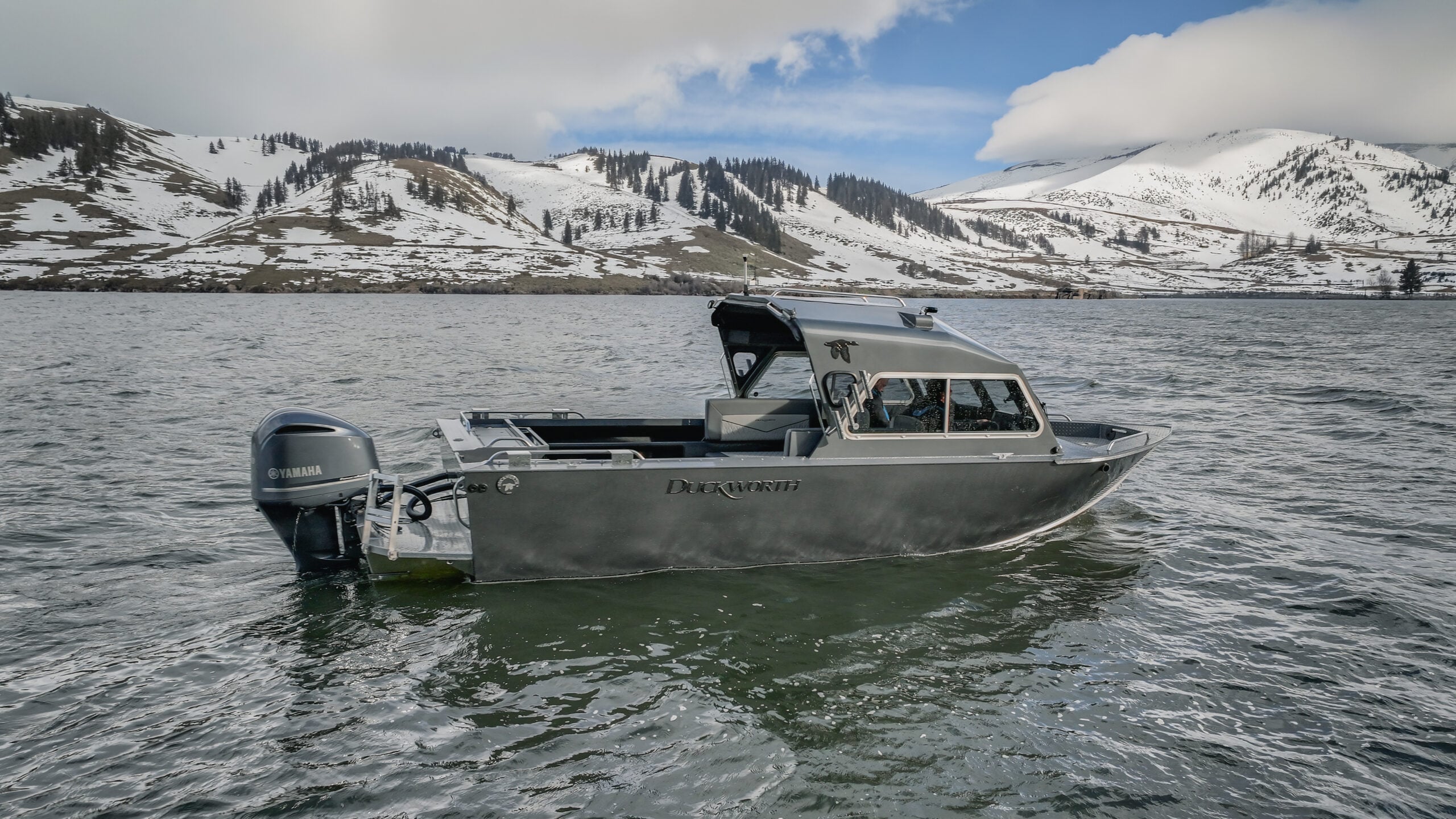

The Duckworth 23 Navigator is a premium, high-performance aluminum fishing boat designed for anglers who fish big water and demand durability, stability, and all-day comfort.
Built with heavy-gauge welded aluminum construction, this 23-foot aluminum fishing boat delivers confident handling in rough conditions while maintaining excellent fuel efficiency. Its advanced reverse‑chine aluminum hull provides a smooth, dry ride, improved control, and added lift at cruising speeds. The Pacific Offshore Bracket™ increases usable cockpit space without sacrificing strength or seaworthiness, making it ideal for trolling, casting, and multi-species fishing. Wide gunwales enhance safety and fishability, while smart storage solutions keep gear organized and accessible. Available hardtop configurations extend your season and add protection from wind and weather. Whether you’re targeting salmon, walleye, or other game fish, the Duckworth 23 Navigator stands out among aluminum fishing boats for sale as a versatile, dependable platform for serious freshwater and near-coastal fishing.
Specifications

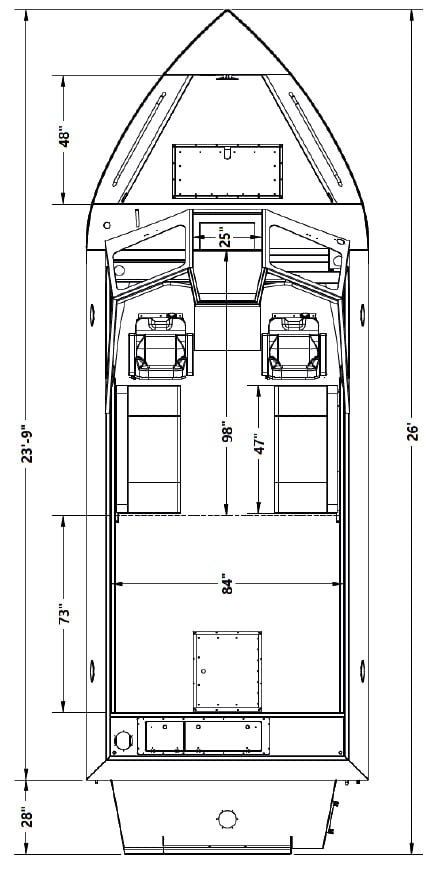

| Length (including bracket) | 26′ 0″ / 7.6m |
|---|---|
| Beam | 8′ 6″ / 2.6m |
| Side | 0.125″ / 3.18mm (5052-H32) |
| Height of Sides | 39″ / 99.1cm |
| Bottom | 0.190″ / 4.83mm (5086-H116) |
| Bottom Width | 7′ / 213.4 cm |
| Dry Weight | 2894lbs. / 1312.7kg |
| Fuel | 65 USG /246L diurnal fuel system |
| Deadrise | Bow: 34° Forward: 28° Transom: 18° |
| Max HP Rating | 350HP / 261kw |
| Maximum Capacities | 8 person or 1320lb, (600 kg) 1338kg. motor, persons, gear |
Build Your Own Duckworth
Customize your boat how you want it.
Deadrise
STANDARD FEATURES
Hull Features
- 25″ Single engine offshore bracket with integral bottom sheet and full width swim platform
- Extruded chine, toe rail, keel strip, and gunwales
- Full reverse chine bottom design

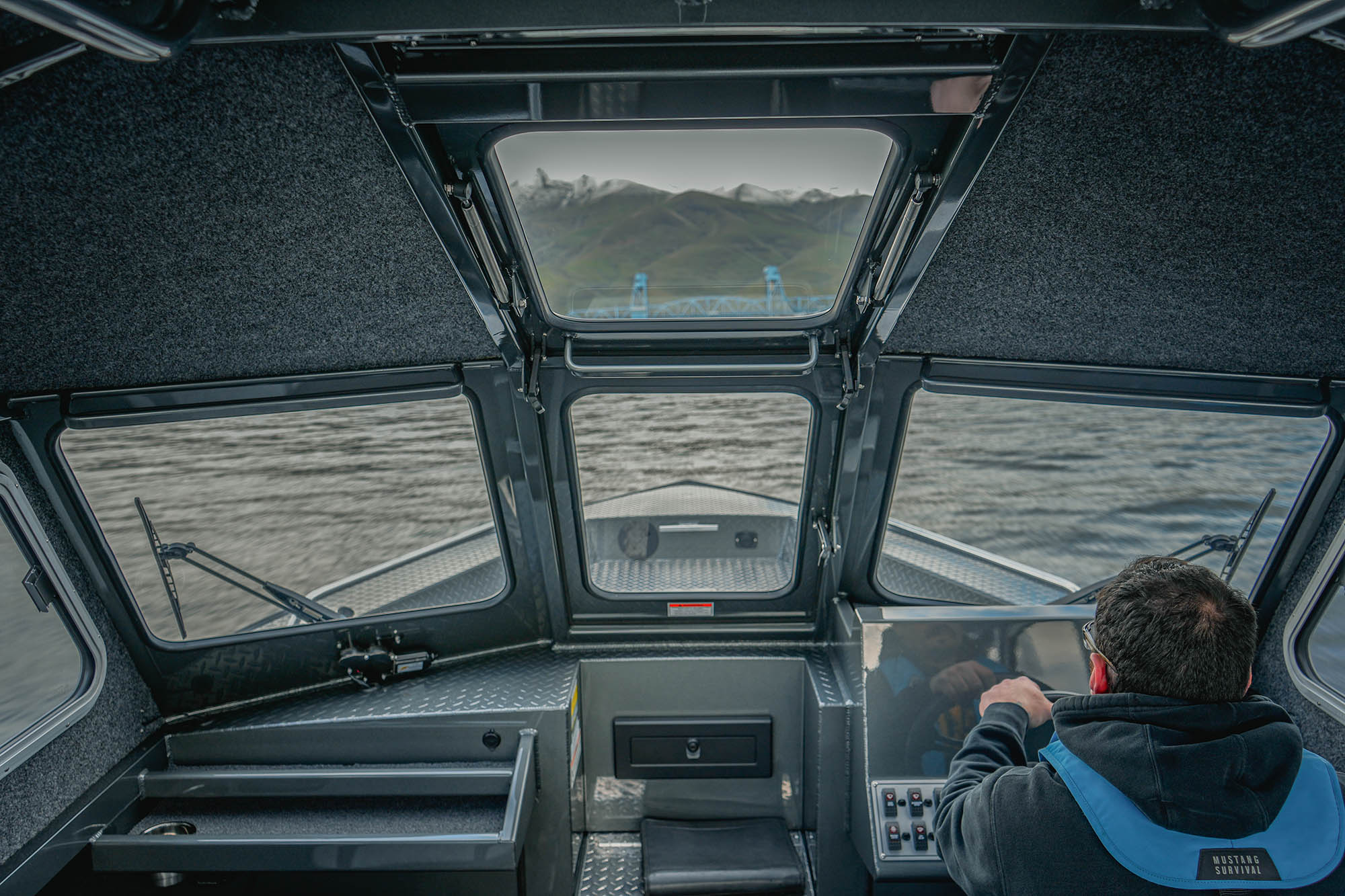

- 5 piece welded, walkthrough windshield with grab handles
- Recessed self bailing diamond tread bow and bow box

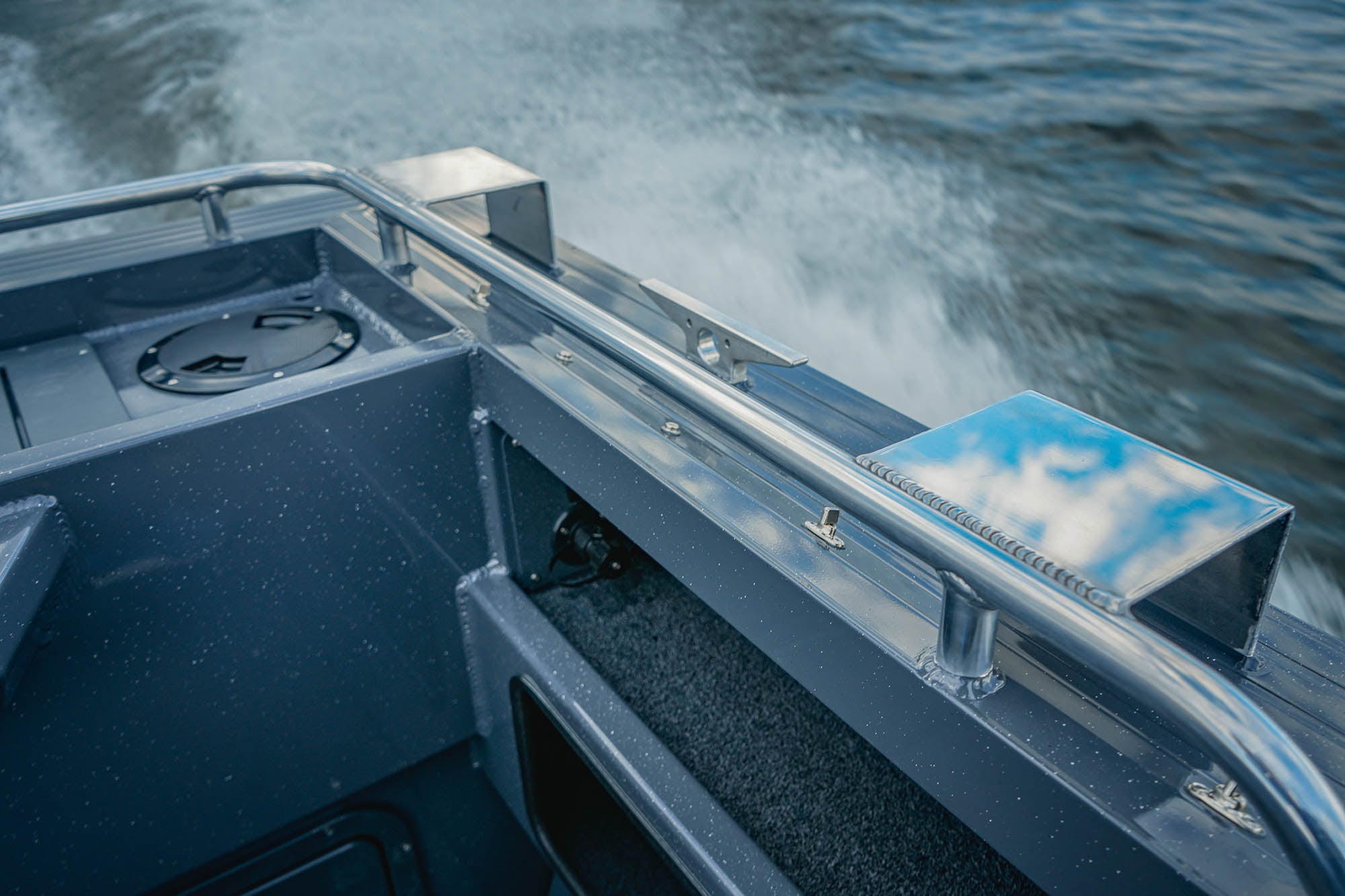

- 3″ polished bow & stern rails w/downrigger brackets
- Bow storage (Room for 2nd battery)

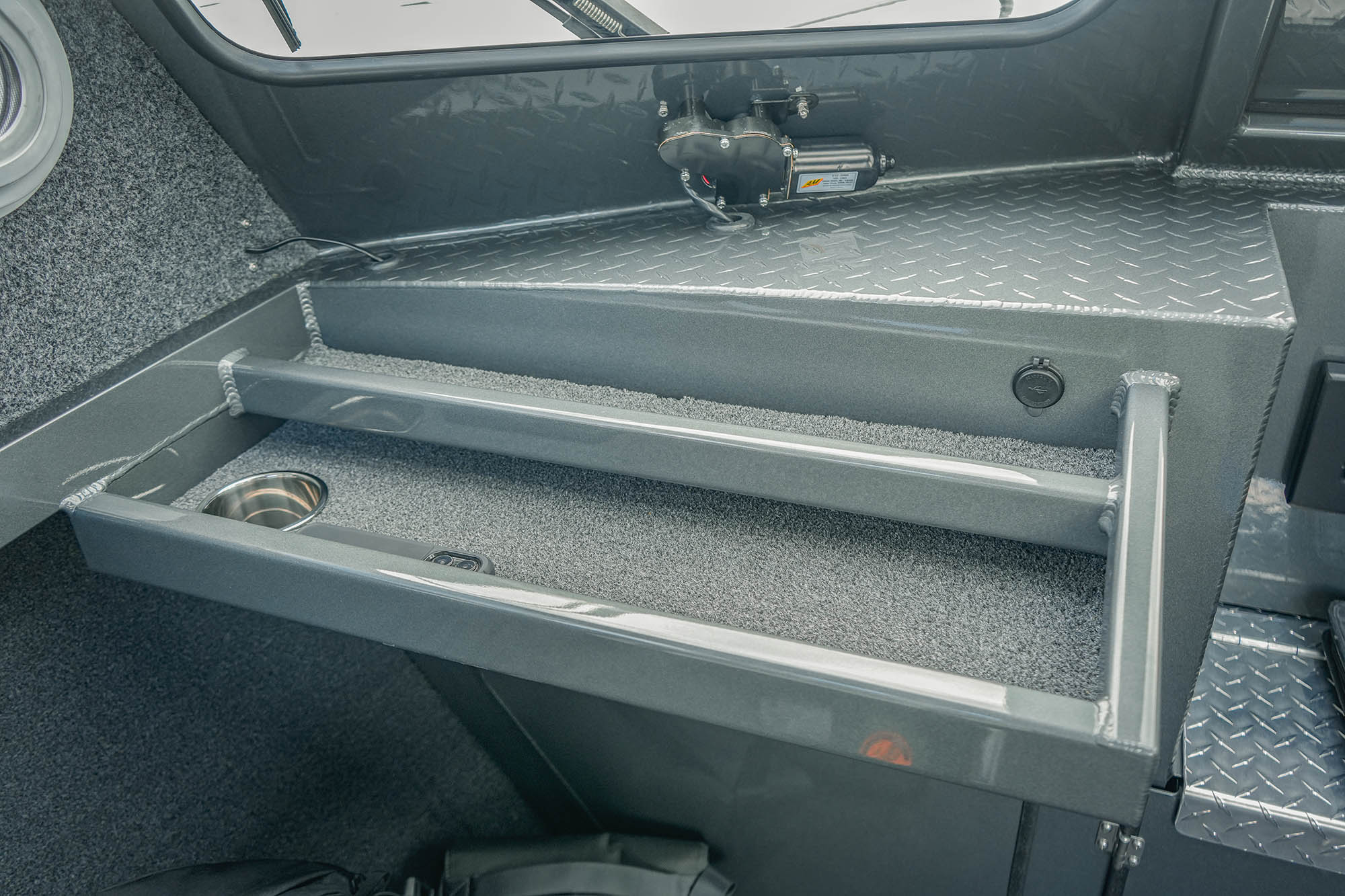

- Passenger console tray w/grab handle

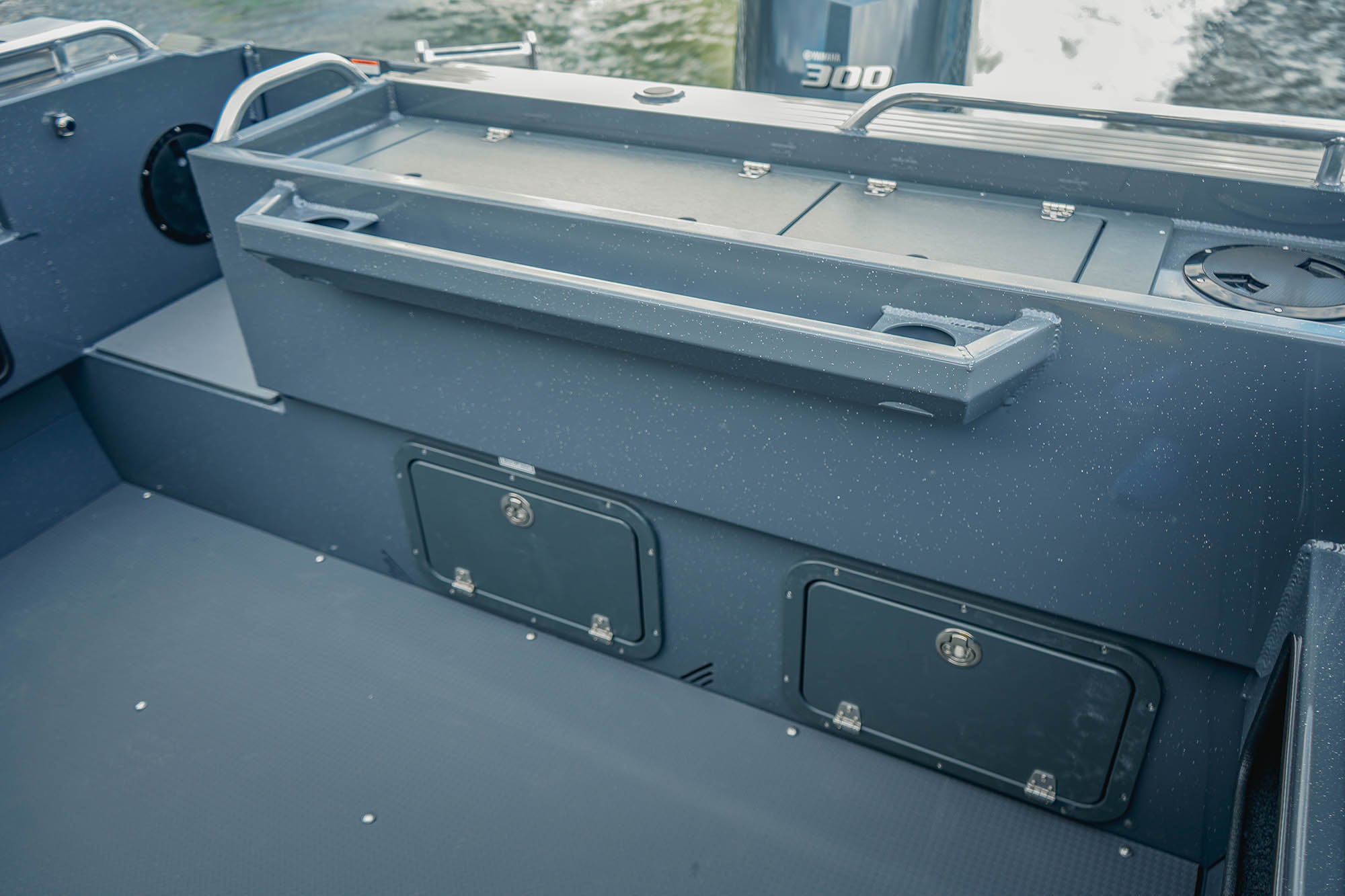

- Fishermen’s transom with livewell, self draining utility area, 2 piece cutting board hatch lid and framed rigging access panels

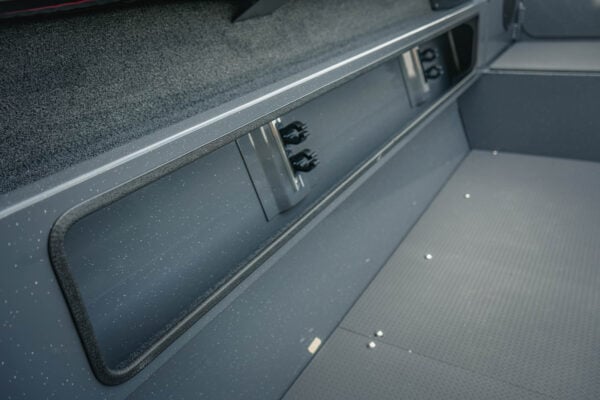

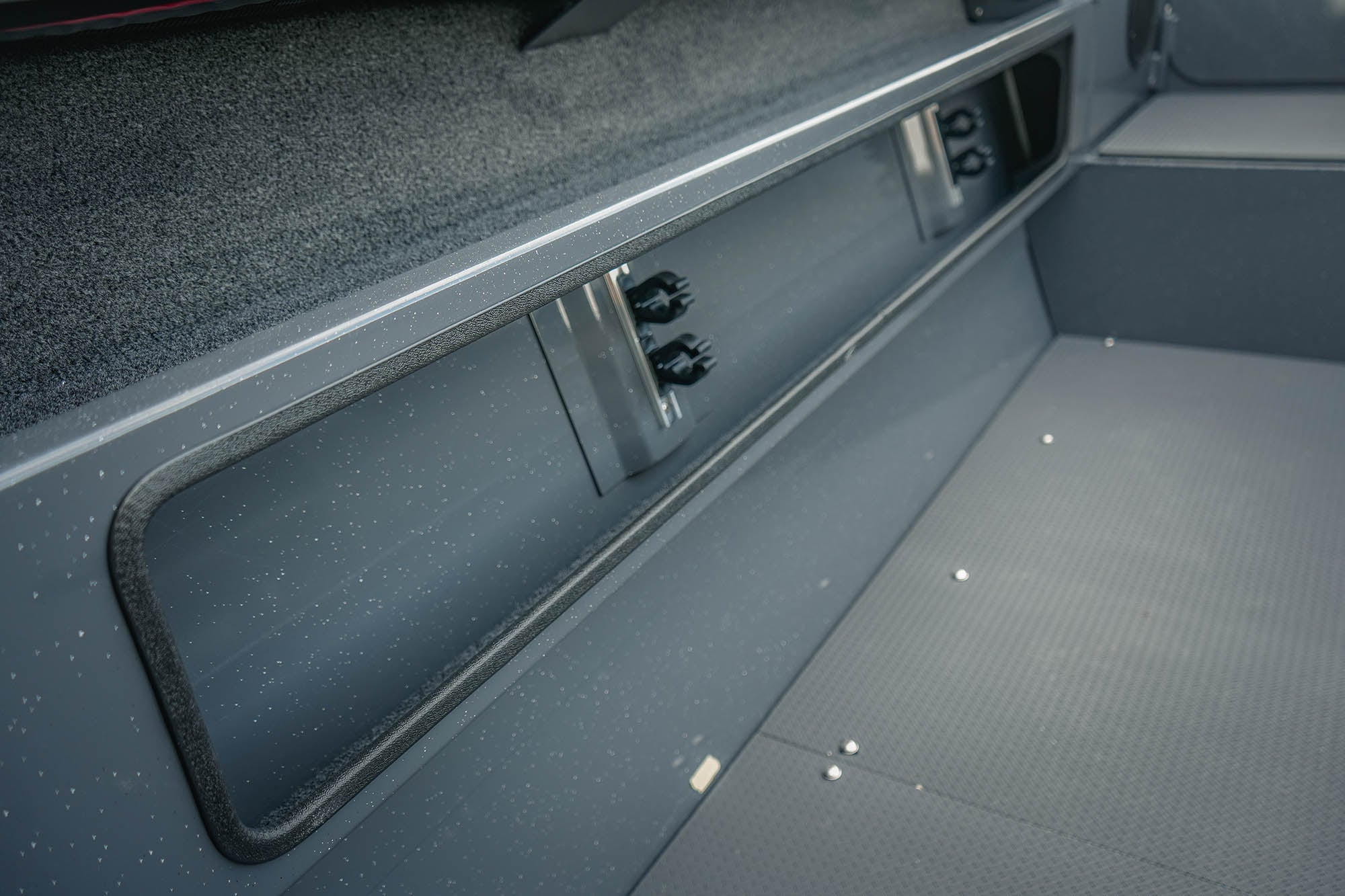

- Side storage trays with gunwale rod racks- 2 per side
- Welded remote kicker motor bracket
- Welded double bow eye
- 2 – welded stern eyes
- 5 – 8″ welded cleats
- 3-step boarding ladder and grab handle
- Pressure tested subfloor fuel cell – diurnal system compliant
- Transducer brackets
- Trim tab brackets
Exterior Features
- Choice of standard paint colors
- Top, 1/2 side and deck paint
- Side stripes & vinyl graphics
- Granite color paint on gunwales
- Offshore zinc anodes – 2x
- Stainless steel thru-hull fittings below waterline w/ seacock valves

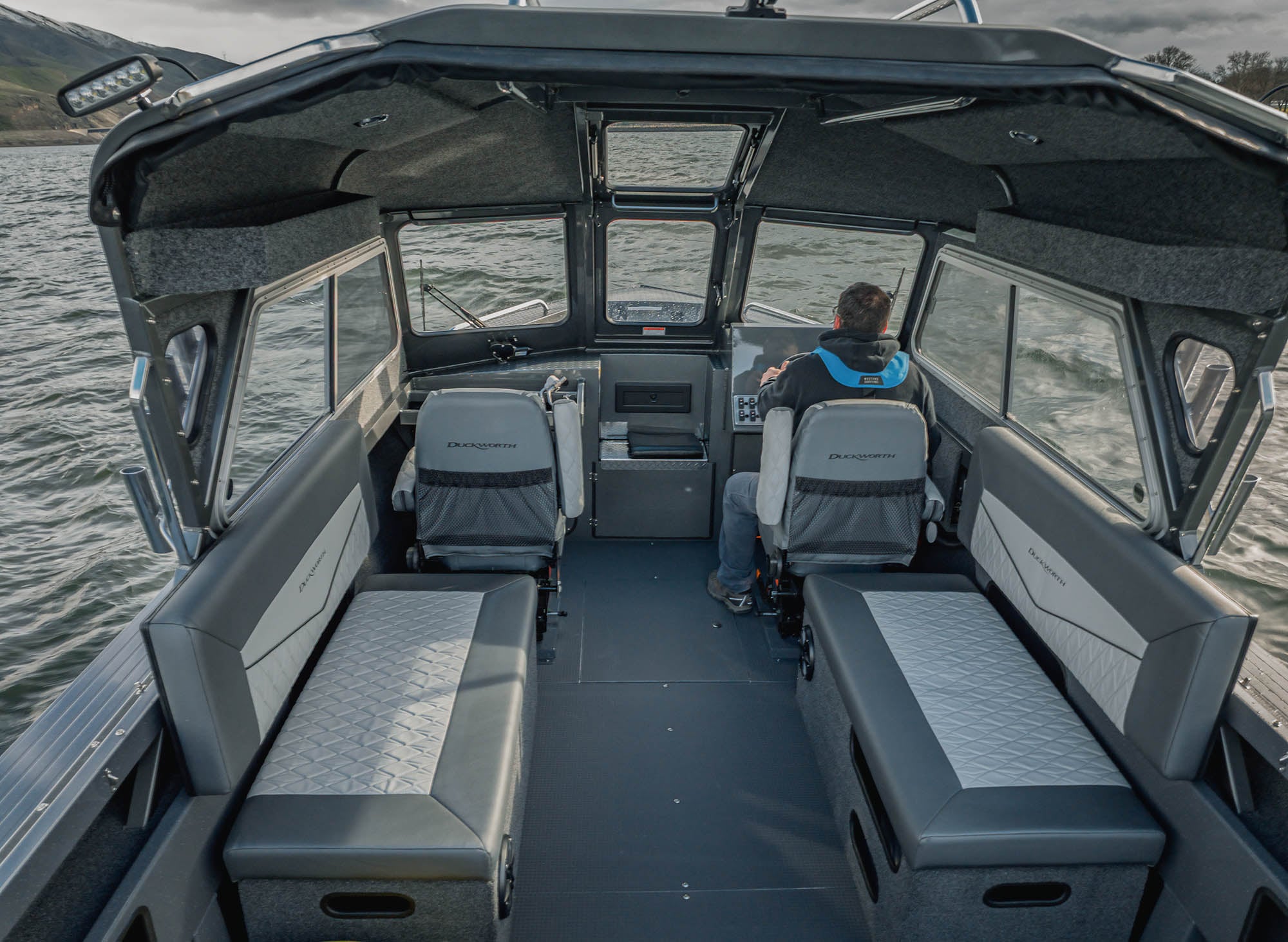

Interior Features
- Choice of grey or tan interior package

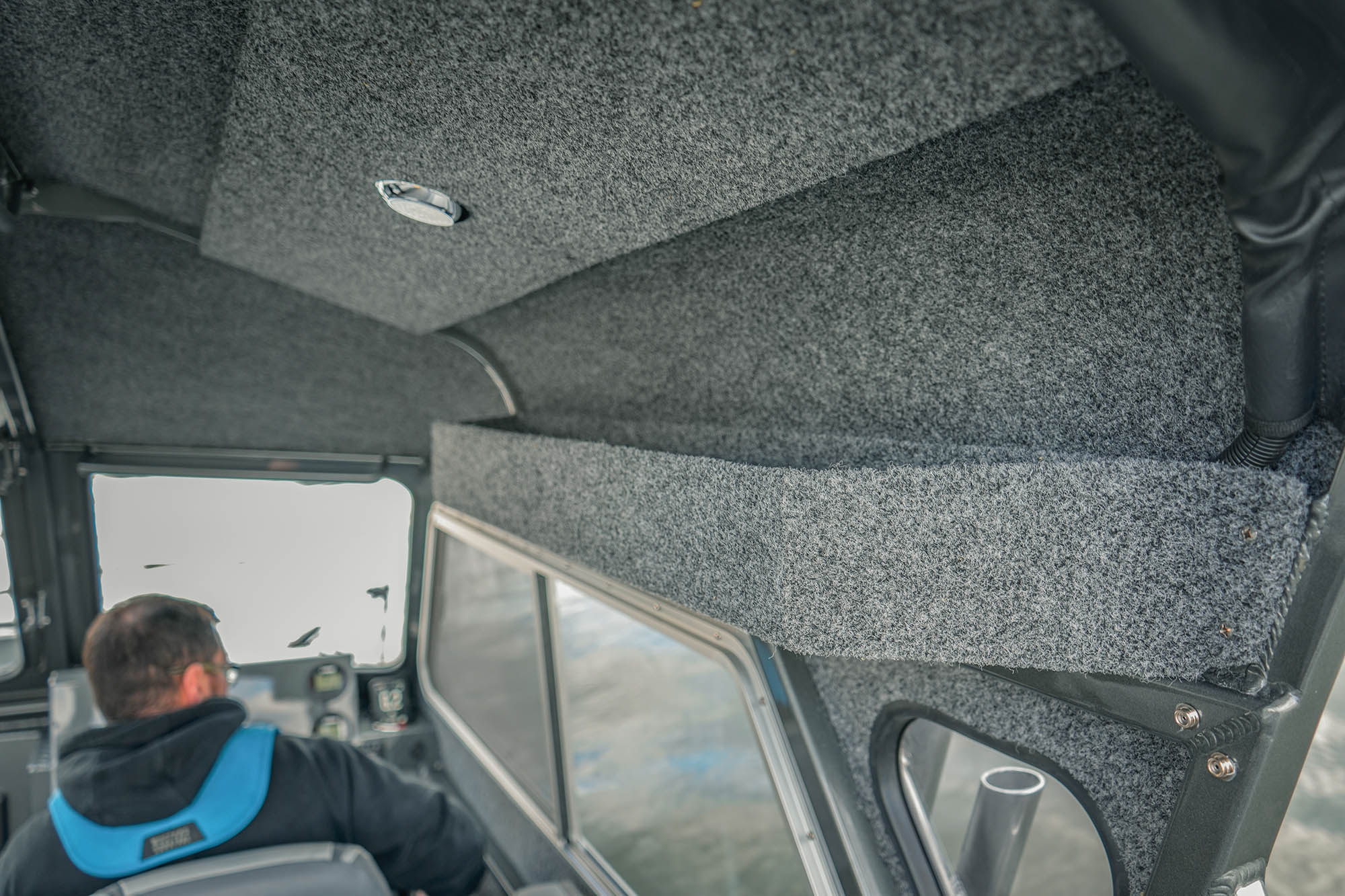

- Carpeted sidewalls & side tray/storage boxes
- Vinyl covered marine grade plywood floors and kick panels
- Stainless steel cup holders
- Netted Storage
- Heavy duty convertible top with side curtains, backdrop, and top boot

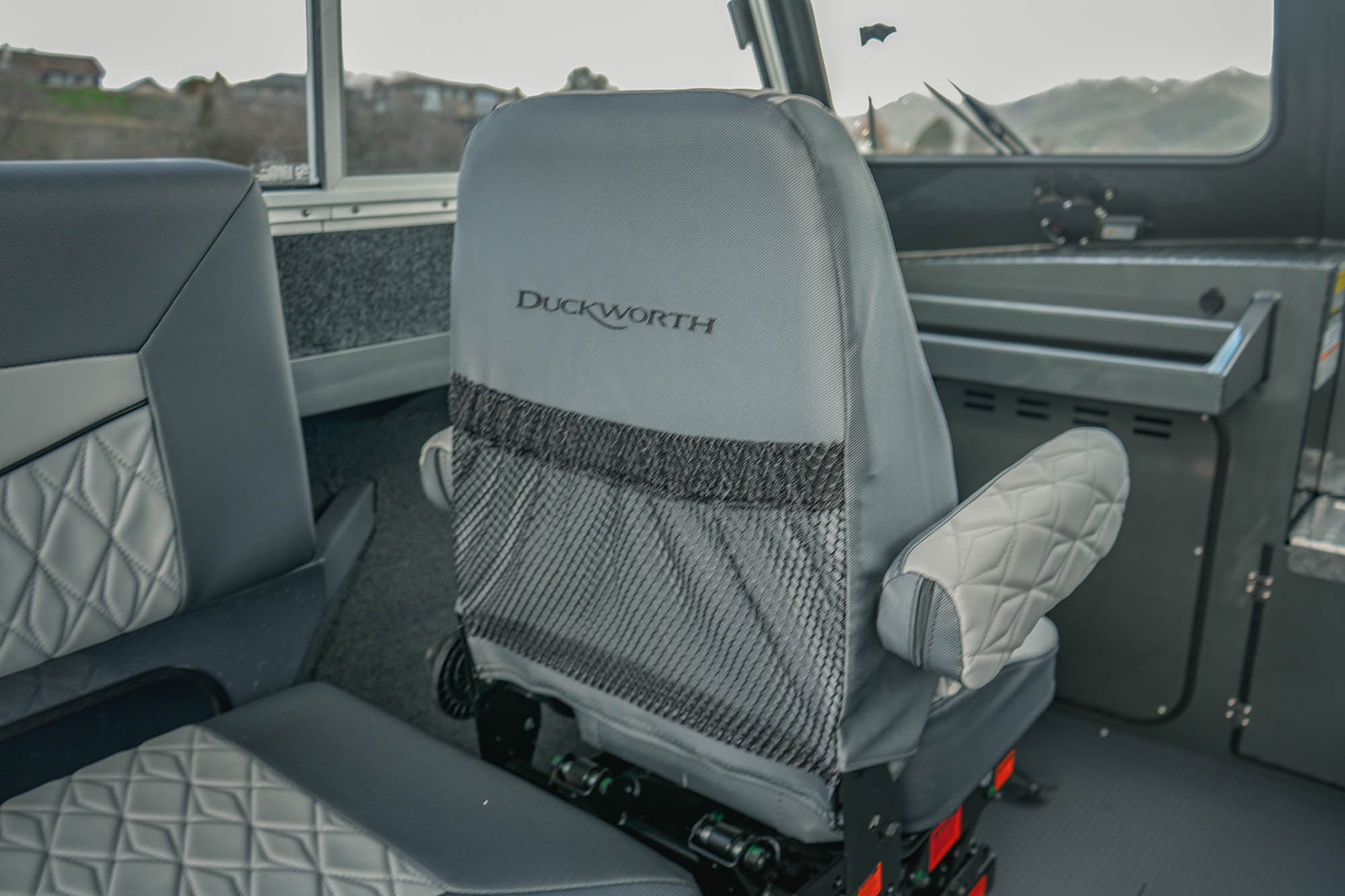

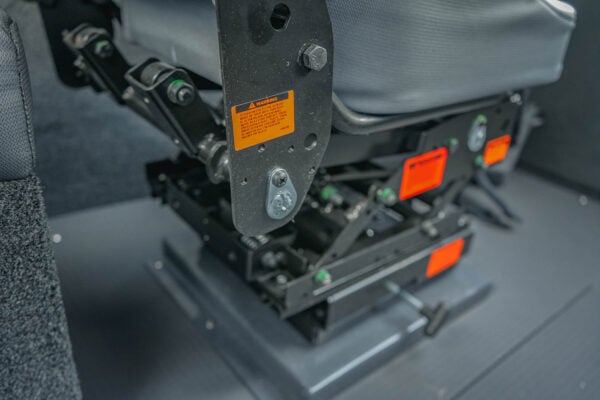

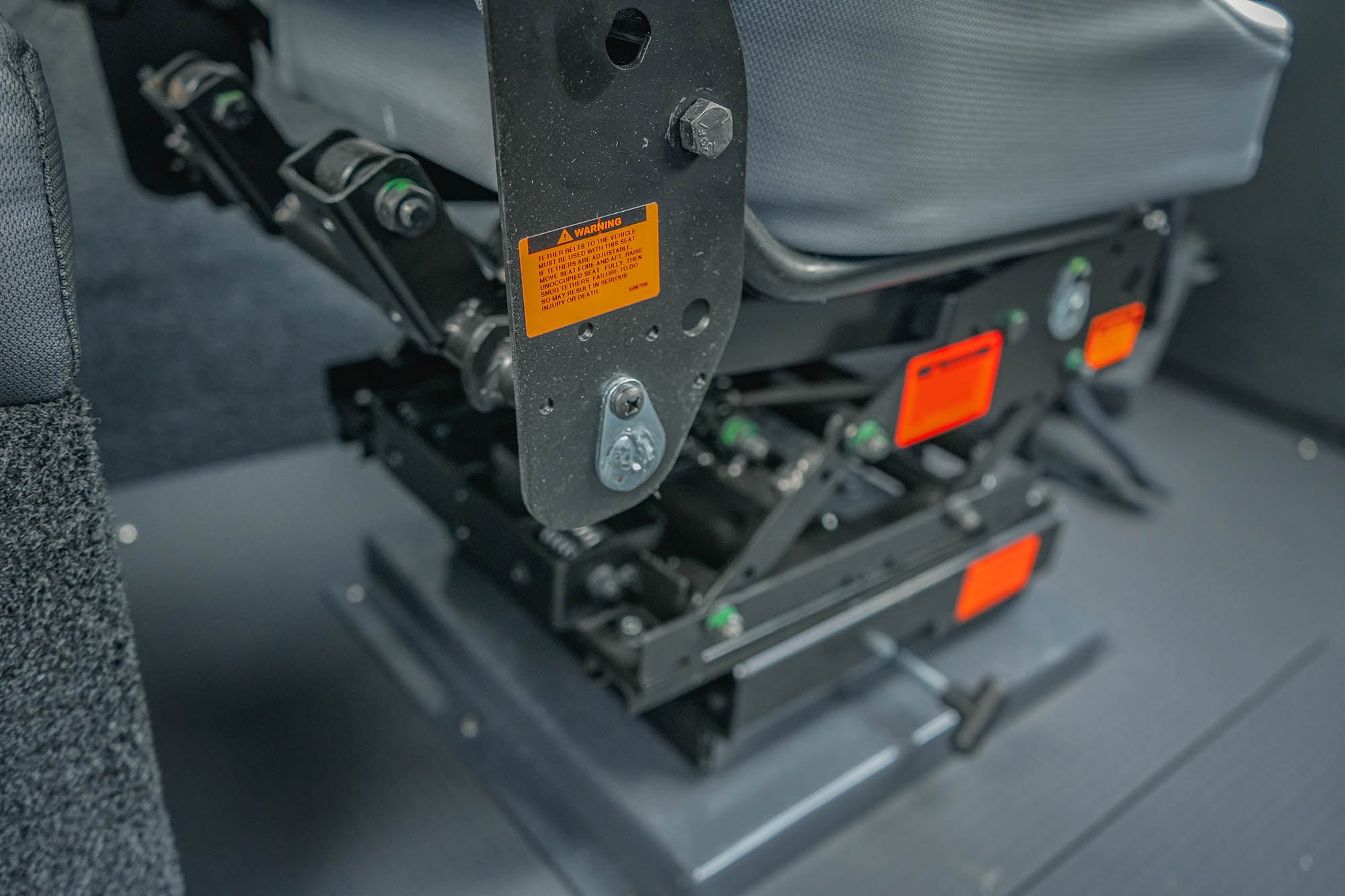

- Severe duty mariner seats w/swivels
- 47″ Rear bench seats w/back rest
- Locking glove box
- Rear transom storage
- Forward and aft floor storage compartments
Rigging Options
- Driver side pantograph wiper
- Hydraulic steering system

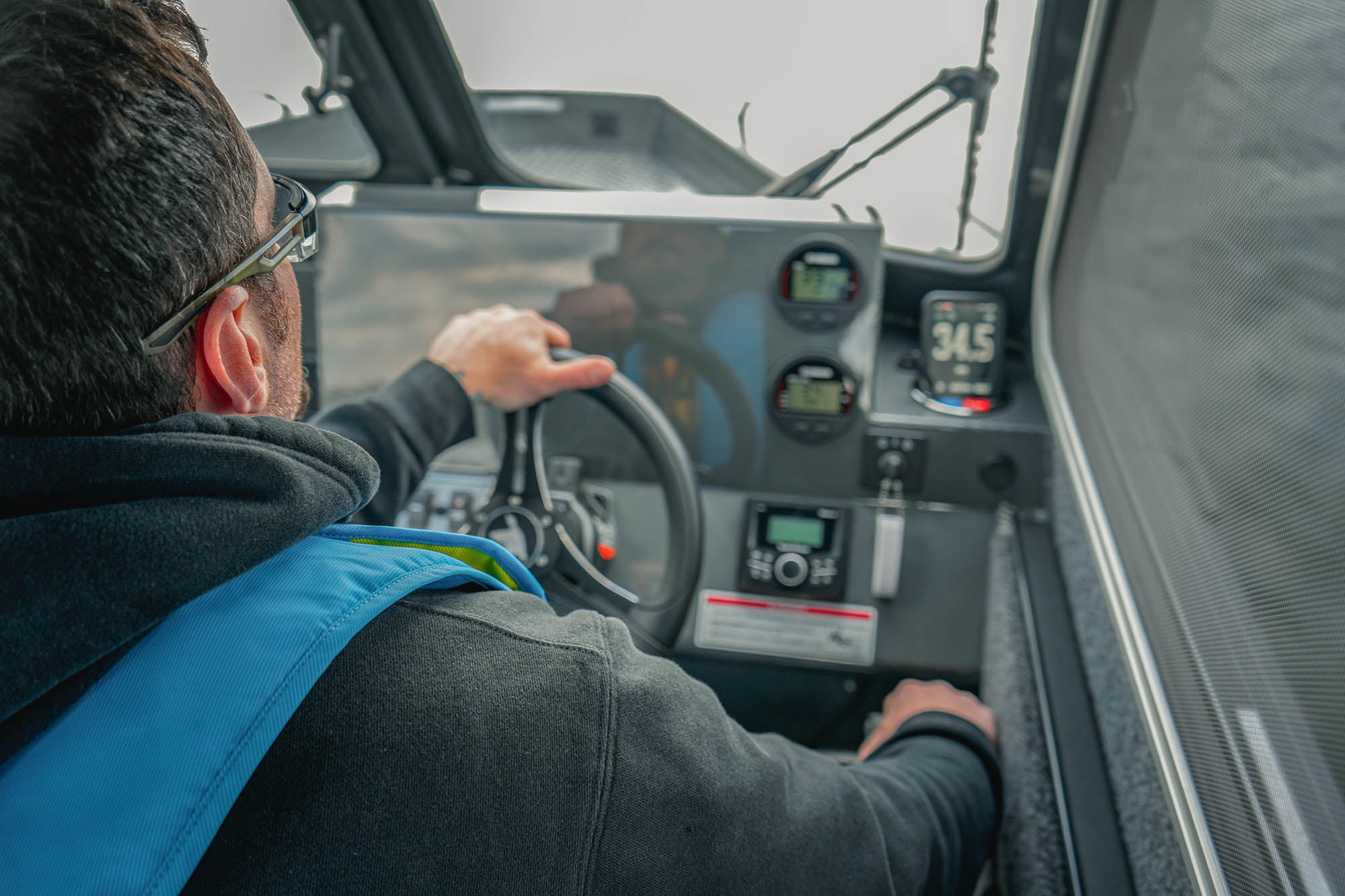

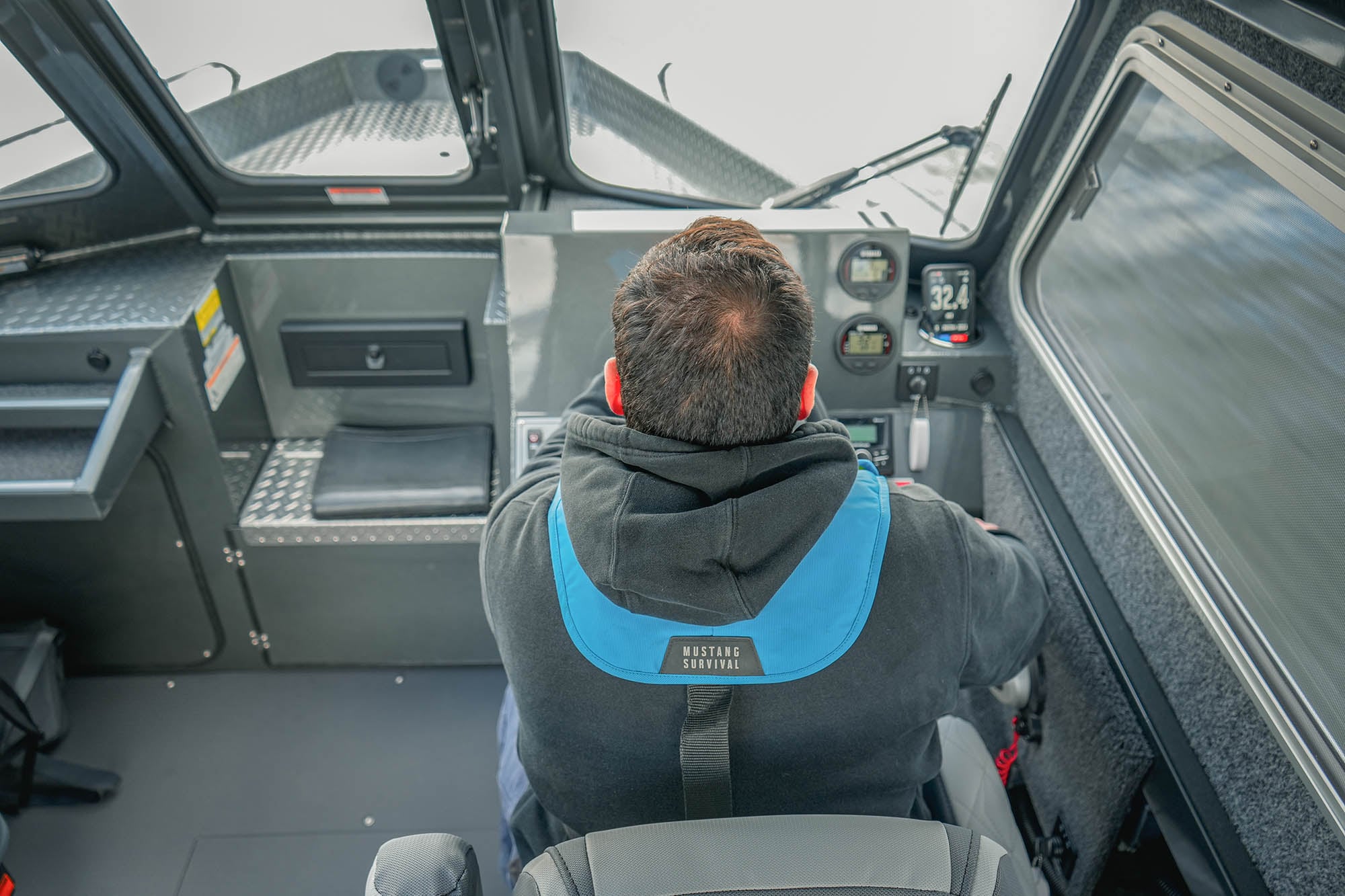

- Deluxe gauge package and USB port
- LED Navigation lights and anchor lights
- Rear livewell
- Stainless steel marine horn
- Auto bilge pump
- Kicker motor fuel quick connect
- Fuel water separator
- Single Battery Switch only (No Battery)
Recommended Trailer
-
EZ Loader – T102BT 23-25 5700
-
Gateway – GTT52-22-25
